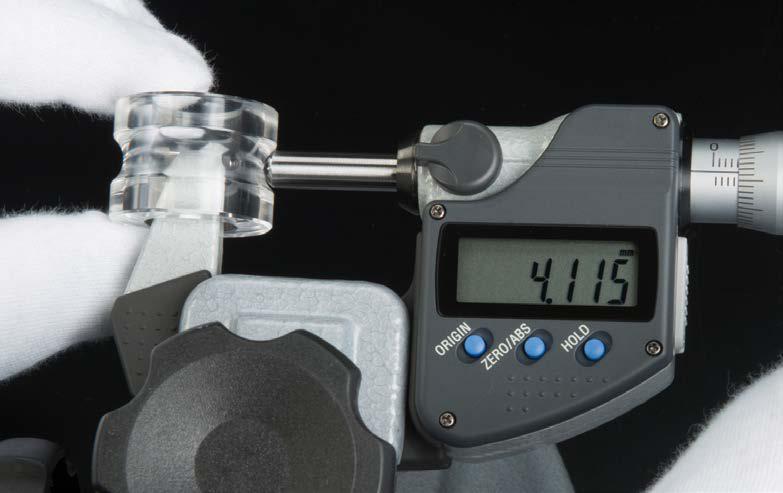

▪Designed to measure workpieces with concave-concave surfaces. The spherical contact with the workpiece at a point, thus Increasing measurement accuracy.
▪IP65 water/dust protection (series 395).
▪Equipped with Ratchet Stop for constant measuring force.

Click to Expand

MITUTOYO SERIES 395, 115, 295 TUBE MICROMETER SPHERICAL ANVIL AND SPINDLE TYPE BOTH SIDE BALL

Product Overview

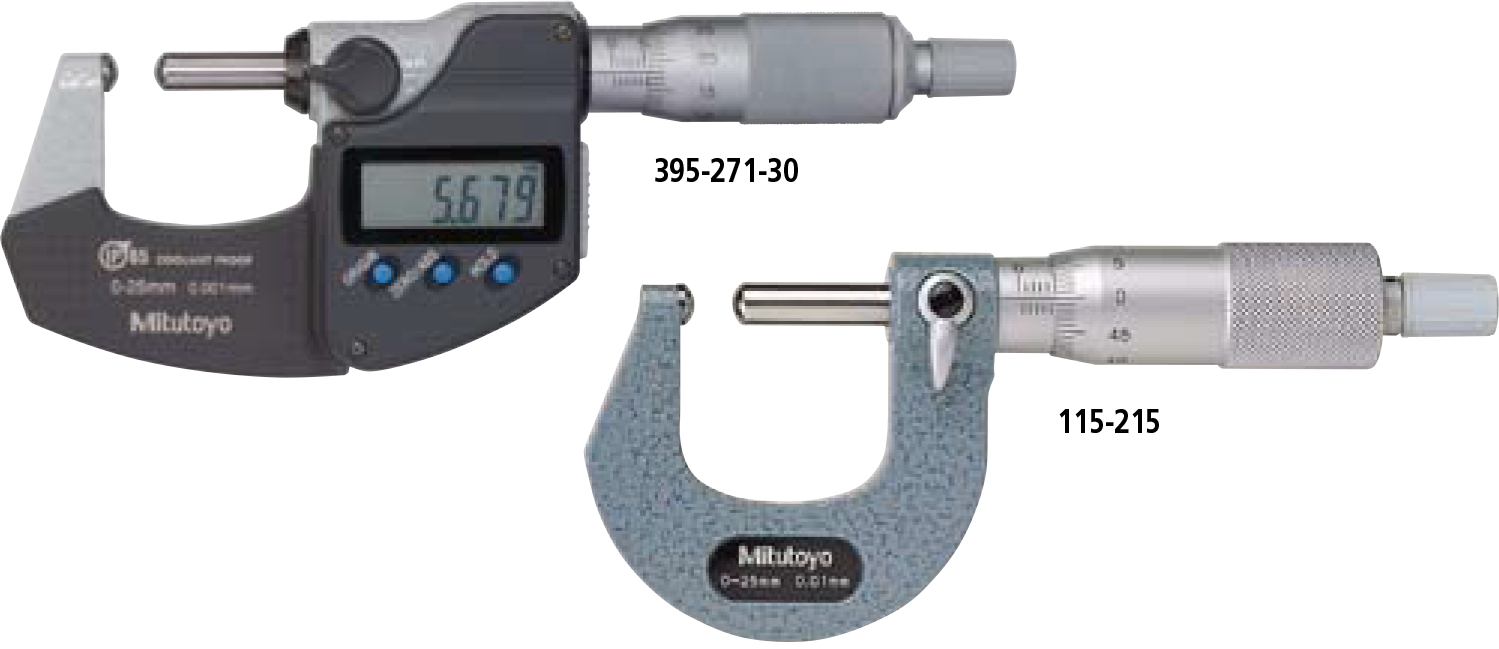

The Mitutoyo Series 395, 115, and 295 Tube Micrometers feature spherical anvils and spindles designed specifically to measure workpieces with concave-concave surfaces. The spherical design ensures contact with the workpiece at a single point, increasing measurement accuracy. Series 395 models provide IP65 water/dust protection, while all models are equipped with a Ratchet Stop to ensure a constant measuring force.

Key Features & Capabilities

Spherical Anvil and Spindle: Makes point-contact with concave-concave surfaces to maximize measurement precision.
IP65 Water/Dust Protection: Built-in dust and water protection standard on Series 395 Digimatic models.
Ratchet Stop: Delivers repeatable, constant measuring force across operations.
Position Detection: Electromagnetic rotary sensor utilized on Digimatic models (Series 395).
Battery Life: Approximately 2.4 years under normal use (Series 395).

Technical Specifications

Series 395 – Metric (Digimatic) Specifications

Code No.	Range (mm)	Resolution (mm)	Maximum Permissible Error $JMEP$ (µm)	øD (mm)

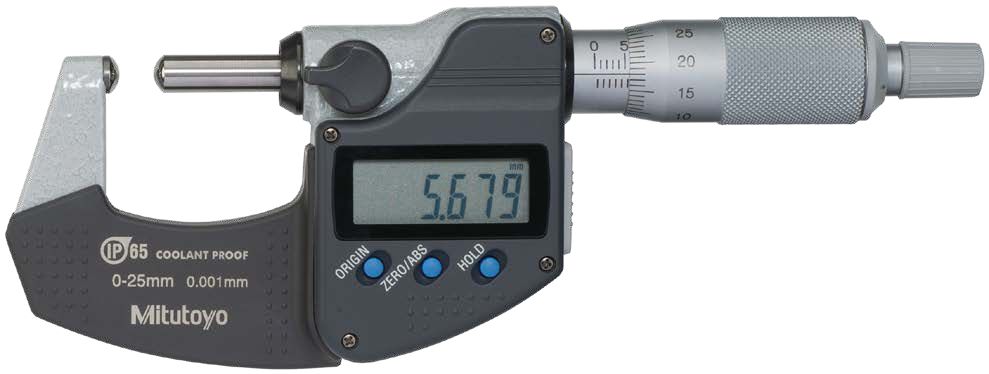

395-271-30	0 - 25	0.001	±2	15
395-272-30	25 - 50	0.001	±2	15
395-273-30	50 - 75	0.001	±3	19
395-274-30	75 - 100	0.001	±3	20

Series 395 – Inch/Metric (Digimatic) Specifications

Code No.	Range (in)	Resolution	Maximum Permissible Error $JMEP$ (in)	øD (in)
395-371-30	0 - 1	0.00005 in / 0.001 mm	±0.0001	0.59
395-372-30	1 - 2	0.00005 in / 0.001 mm	±0.0001	0.59
395-373-30	2 - 3	0.00005 in / 0.001 mm	±0.00015	0.75
395-374-30	3 - 4	0.00005 in / 0.001 mm	±0.00015	0.79

Series 115 & 295 – Metric Specifications (Analog & Mechanical Counter)

Code No.	Range (mm)	Graduation (mm)	Maximum Permissible Error $JMEP$ (µm)	øD (mm)
Analog

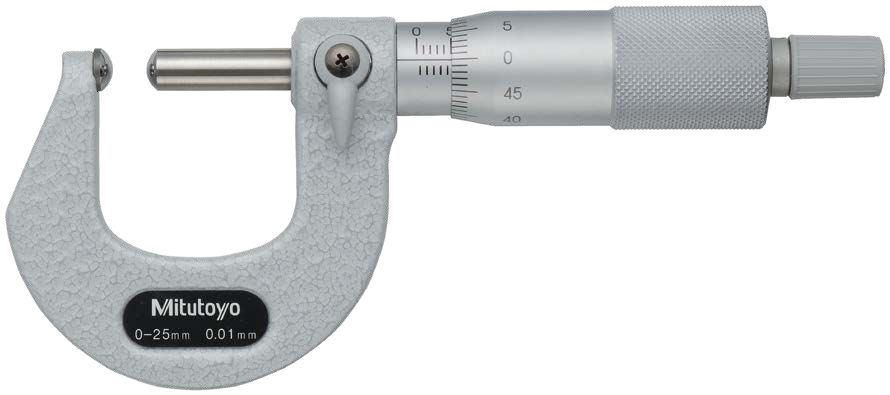

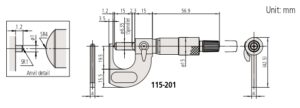

115-201	0 - 15	0.01	±3	5.5
115-215	0 - 25	0.01	±3	10
115-216	25 - 50	0.01	±3	11
115-217	50 - 75	0.01	±4	17
115-218	75 - 100	0.01	±4	18
Mechanical Counter Model
295-215	0 - 25	0.01	±3	10

Series 115 & 295 – Inch Specifications (Analog & Mechanical Counter)

Code No.	Range (in)	Graduation (in)	Maximum Permissible Error $JMEP$ (in)	øD (in)
Analog
115-253	0 - 1	0.0001	±0.00015	0.40
115-242	1 - 2	0.001	—	0.44
115-243	2 - 3	0.001	—	0.67
Mechanical Counter Model
295-253	0 - 1	0.0001	±0.00015	0.40

Standard Accessories

Setting standard: 1 pc. (Included for models above 25mm / 1 in ranges)
Spanner (200168): 1 pc. (For model 115-201)
Spanner (301336): 1 pc. (For models other than 115-201)
SR44 Battery (1 pc., code 938882) included for operational checks on Digimatic models
