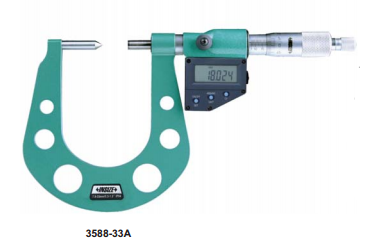

DIGITAL DISK BREAK MICROMETER CODE 3588

Name: DIGITAL DISK BREAK MICROMETER CODE 3588
Brand: INSIZE
SKU: 3588

Code:

Measure thickness of disk brakes Resolution 0.001mm/0.00005″ IP54 dust/waterproof Button function: on/off, set, mm/inch, ABS/INC, data output Data output SR44 or LR44 battery, automatic power off Ratchet stop Carbide measuring faces Supplied with setting standards Optional accessory: data output system Code Range Accuracy L 3588-33A 7.6-33mm/0.3-1.3″ 5μm 64.5 3588-50A 25-50mm/1-2″ 5μm 82

f in

Click to Expand

DIGITAL DISK BREAK MICROMETER CODE 3588

Product Overview

The INSIZE Digital Disk Brake Micrometer (Code 3588) is a precision measuring instrument engineered specifically for measuring the thickness of disk brakes. Featuring a robust digital display, carbide measuring faces, and an IP54 dust and waterproof rating, this tool is designed for reliable industrial dimensional verification.

Key Features & Capabilities

Application: Specifically designed to measure the thickness of disk brakes
Resolution: 0.001mm / 0.00005″
Protection Rating: IP54 dust/waterproof
Button Functions: On/off, set, mm/inch, ABS/INC, data output
Power Management: Powered by SR44 or LR44 battery with automatic power off functionality
Measurement Control: Equipped with a ratchet stop for consistent measuring force
Measuring Faces: Carbide-tipped measuring faces for enhanced wear resistance
Data Transfer: Data output capability (optional data output system available as an accessory)
Standard Inclusion: Supplied with setting standards
