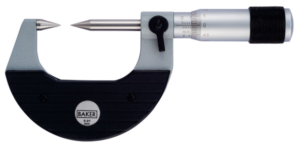

FEATURES OF POINT MICROMETER
  • Spindle made from stainless steel for rust prevention
  • Measuring Faces – 15° & 30° hardened steel points having radius 0.3 mm approximately
  • Point micrometer in-built ratchet in the thimble
  • Zero setting once done cannot be easily tampered with Sharp laser marking for better visibility & durability
  • Heat insulating grip plates cover the entire handling portion of the micrometer frame
  • Robust design withstands toughest workshop conditions



  special-external-micrometer-point_02 special-external-micrometer-point_03



Measuring Range mm Reading mm Point Angle Degrees Type A mm B mm C mm Measuring Range inch Reading inch Type
0-25 0.01 15 MMA25-P1 7.1 57.5 30.5 0-1″ 0.001″ INA1-P1
0-25 0.01 30 MMA25-P2 7.1 57.5 30.5 0-1″ 0.001″ INA1-P2
25-50 0.01 15 MMA50-P1 8 83 45 1-2″ 0.001″ INA2-P1
25-50 0.01 30 MMA50-P2 8 83 45 1-2″ 0.001″ INA2-P2
50-75 0.01 15 MMA75-P1 8 108 58 2-3″ 0.001″ INA3-P1
50-75 0.01 30 MMA75-P2 8 108 58 2-3″ 0.001″ INA3-P2
75-100 0.01 15 MMA100-P1 8 133 67.5 3-4″ 0.001″ INA4-P1
75-100 0.01 30 MMA100-P2 8 133 67.5 3-4″ 0.001″ INA4-P2



Check the PDF
