MITUTOYO SERIES 343 DIGITAL CALIPER TYPE MICROMETER

Code:

▪Effective for measuring workpiece features where access is difficult.
▪Measuring faces: Carbide tipped
▪Equipped with Ratchet Stop for constant measuring force.

Click to Expand

MITUTOYO SERIES 343 DIGITAL CALIPER TYPE MICROMETER

Product Overview

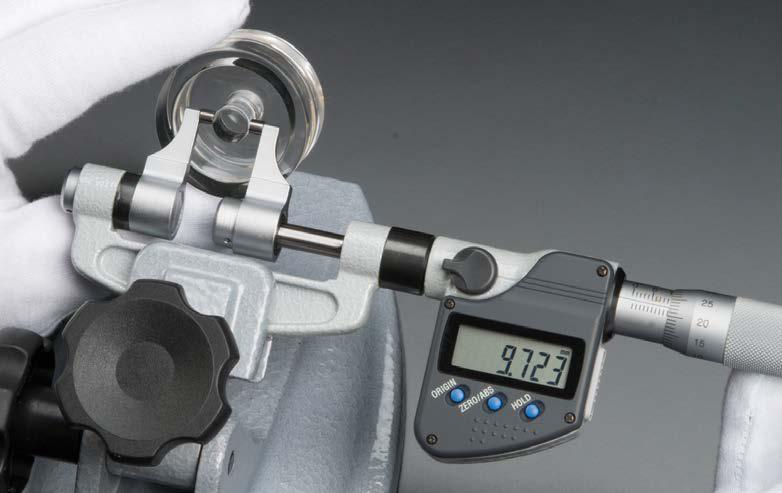

The Mitutoyo Series 343 Digital Caliper Type Micrometer is designed for measuring workpiece features where access is difficult with a standard micrometer. This Digimatic instrument features a measuring range up to 100 mm and is equipped with carbide-tipped measuring faces and a ratchet stop for constant measuring force.

Key Features & Capabilities

Effective for measuring workpiece features where access is difficult with a standard micrometer
Measuring faces: Carbide tipped
Equipped with Ratchet Stop for constant measuring force
Power source: SR44 battery (1 pc., part number 938882 included as standard for operational checks)
Battery life: Approximately 2.4 years under normal use
Position detection method: Electromagnetic rotary sensor
Standard accessories include a setting standard (except for measuring range 0 to 25 mm / 0 to 1 in models) and a spanner (301336, 1 pc.)

Technical Specifications

Metric (With SPC Data Output)

Code No.	Range (mm)	Resolution (mm)	Maximum Permissible Error JMPE (µm)	Flatness (µm)	Parallelism (µm)
343-250-30	0 - 25	0.001	±5	0.3	3
343-251-30	25 - 50	0.001	±6	0.3	3
343-252-30	50 - 75	0.001	±7	0.3	4
343-253-30	75 - 100	0.001	±8	0.3	4

Inch/Metric (With SPC Data Output)

Code No.	Range (in)	Graduation (in)	Maximum Permissible Error JMPE (in)	Flatness (in)	Parallelism (in)
343-350-30	0 - 1	0.00005 in / 0.001 mm	±0.00025	0.000012	0.00012
343-351-30	1 - 2	0.00005 in / 0.001 mm	±0.0003	0.000012	0.00012
343-352-30	2 - 3	0.00005 in / 0.001 mm	±0.00035	0.000012	0.00016
343-353-30	3 - 4	0.00005 in / 0.001 mm	±0.0004	0.000012	0.00016

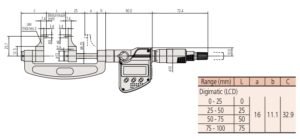

Digimatic (LCD) Dimensions Matrix (Unit: mm)

Range (mm)	L	a	b	C
0 - 25	0	16	11.1	32.9
25 - 50	25	16	11.1	32.9
50 - 75	50	16	11.1	32.9
75 - 100	75	16	11.1	32.9

Optional Accessories for Series 343

Code No.	Type	Description
264-020	—	USB Input Tool Series USB Keyboard Signal Conversion Type IT-020U
05CZA662	B	Connection cable (1 m)
05CZA663	B	Connection cable (2 m)
06AFM380B	B	USB Input Tool Direct (2 m)
02AZD730G	IP67	U-WAVE-T
02AZD880G	Buzzer	U-WAVE-T
02AZE200	—	U-WAVE-T mounting bracket
02AZD790B	B	Connection cable for U-WAVE-T (160 mm)
02AZE140B	B	Connection cable for U-WAVE-T for foot switch
264-622	IP67	U-WAVE-TM
264-623	Buzzer	U-WAVE-TM
264-626	IP67	U-WAVE-TMB
264-627	Buzzer	U-WAVE-TMB
02AZF310	IP67	Connecting unit for U-WAVE-TM/TMB
