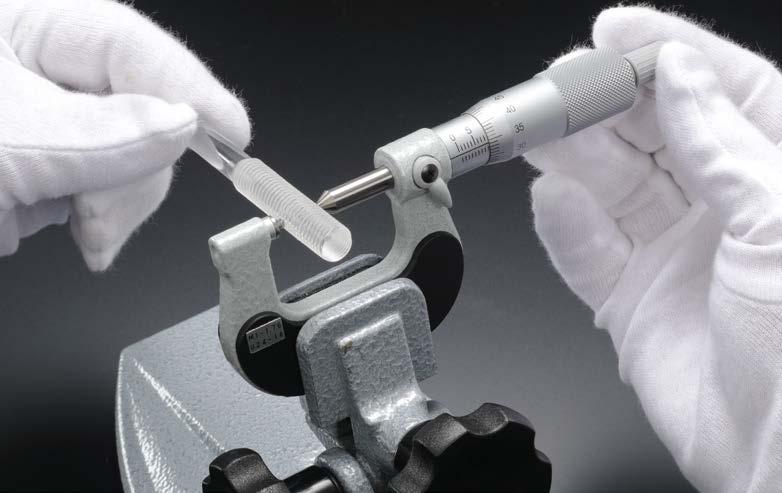

- Fixed anvil type to suit 60º threads
- Directly indicates screw pitch diameter (no need for calculation)
- Equipped with Ratchet Stop for constant measuring force.
SPECIFICATIONS
Metric
| Order No. | Thread to be measured
(Metric/nnified) |
Range | Graduation |
|---|---|---|---|
| 125-101 | 0.4 – 0.5mm/64 – 48TPI |
0 – 25mm |
0.01mm |
| 125-102 | 0.6 – 0.9mm/44 – 28TPI | ||
| 125-103 | 1 – 1.75mm/24 – 14TPI | ||
| 125-104 | 2 – 3mm/13 – 9TPI | ||
| 125-105 | 3.5 – 5mm/8 – 5TPI | ||
| 125-106 | 0.4 – 0.5mm/64 – 48TPI |
25 – 50mm |
|
| 125-107 | 0.6 – 0.9mm/44 – 28TPI | ||
| 125-108 | 1 – 1.75mm/24 – 14TPI | ||
| 125-109 | 2 – 3mm/13 – 9TPI | ||
| 125-110 | 3.5 – 5mm/8 – 5TPI |
| Order No. | Thread to be measured | Range | Graduation |
|---|---|---|---|
| 125-111 | 0.6 – 0.9mm/44 – 28TPI |
50 – 75mm |
0.01mm |
| 125-112 | 1 – 1.75mm/24 – 14TPI | ||
| 125-113 | 2 – 3mm/13 – 9TPI | ||
| 125-114 | 3.5 – 5mm/8 – 5TPI | ||
| 125-115 | 5.5 – 7mm/4.5 – 3.5TPI | ||
| 125-116 | 0.6 – 0.9mm/44 – 28TPI |
75 – 100mm |
|
| 125-117 | 1 – 1.75mm/24 – 14TPI | ||
| 125-118 | 2 – 3mm/13 – 9TPI | ||
| 125-119 | 3.5 – 5mm/8 – 5TPI | ||
| 125-120 | 5.5 – 7mm/4.5 – 3.5TPI |
* A setting standard is supplied with each model (except for 0-25mm measuring range).
The setting standard is for metric threads (unified) 60°.
DIMENSIONS
No.125-101,125-106
No.125-111,125-116
Technical data
Accuracy: ±(2+R/75)μm, R = max. range (mm) fraction rounded up
Standard accessories: Spanner (301336), 1 pc
