SPECIFICATIONS
Metric
| Order No. | Range | Resolution | Accuracy* | Throat depth | Measuring surfaces |
|---|---|---|---|---|---|
| Digimatic (LCD) | |||||
| 389-251-30 |
0 – 25mm |
0.001mm |
±4µm |
150mm |
F-F |
| 389-261-30 | S-F | ||||
| 389-271-30 | S-S | ||||
| 389-514 | ±5µm | 300mm*1 | F-F | ||
| 389-252-30 |
25 – 50mm |
±4µm |
150mm |
||
| 389-262-30 | S-F | ||||
| 389-272-30 | S-S | ||||
* Excluding quantizing error
Inch/Metric
| Order No. | Range | Resolution | Accuracy* | Throat depth | Measuring |
|---|---|---|---|---|---|
| Digimatic (LCD) | |||||
| 389-351-30 |
0 – 1″ |
.00005″/ 0.001mm |
±.0002″ |
6″ |
F-F |
| 389-361-30 | S-F | ||||
| 389-371-30 | S-S | ||||
| 389-714 | ±.00025″ | 1 | F-F | ||
| 389-352-30 |
1″- 2″ |
±.0002″ |
6″ |
||
| 389-362-30 | S-F | ||||
| 389-372-30 | S-S | ||||
* Excluding quantizing error
Metric
| Order No. | Range | Graduation | Accuracy | Throat depth | Measuring surfaces |
|---|---|---|---|---|---|
| Analog | |||||
| 118-101 |
0 – 25mm |
0.01mm |
±4µm |
100mm | F-F |
| 118-102 |
150mm |
||||
| 118-114 | S-F | ||||
| 118-118 | S-S | ||||
| 118-103 | ±5µm | 300mm* | F-F | ||
| 118-110 | 25 – 50mm | ±4µm | 150mm | ||
| 118-126 | S-S | ||||
*1 Models with a 300mm (12″) throat are equipped with a stand for convenience of measurement in the horizontal orientation as standard.
Inch
| Order No. | Range | Graduation | Accuracy | Throat depth | Measuring surfaces |
|---|---|---|---|---|---|
| Analog | |||||
| 118-129 |
0 – 1″ |
.0001″ |
±.0002″ |
6″ |
F-F |
| 118-116 | S-F | ||||
| 118-120 | S-S | ||||
| 118-107 | .001″ | ±.00025″ | 12″ | F-F | |
| 118-112 | 1″- 2″ | ±.0002″ | 6″ | ||

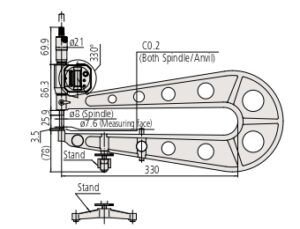

DIMENSIONS
| Order No. | a | b | c | d | e | f |
|---|---|---|---|---|---|---|
| 118-101 | 34 | 110 |
2.5 |
30 |
27.5 |
14.5 |
| 118-102
118-114 118-118 |
43 |
160 |
||||
| 118-103 | 78 | 330 | 3.5 | 38.5 | 35 | 28 |
| 118-110 | 41 | 165 | 2.5 | 55 | 27.5 | 14.5 |
IP Codes (series 389)
Level 6: Dust-proof.
No ingress of dust allowed.
Level 5: Protected against water jets.
Water projected in jets against the enclosure
from any direction shall have no harmful effects.
Technical Data
Flatness: 0.6μm/.000024” for models with 150mm/6” throat
1μm/.00004” for models with 300mm/12” throat
Parallelism: 3μm/.00012”
Quantizing error (series 389): excluding ±1 count
Battery for series 389
SR44 (1pc), 938882, 2pcs:389-514, 389-714 for initial
operational checks (standard accessory)
Battery life: Approx. 2.4 years under normal use (for series 389-2XX, 3XX)
Approx. 1.8 years under normal use (for series 389-514, 714)
Length standard: Electromagnetic rotary sensor (for series 389)
Standard accessories: Reference bar, 1 pc (except for measuring range 0-25mm (0-1″) models)
Spanner (200877), 1 pc (for series 118-1XX)
Spanner (301336), 1 pc (for series 389-2XX, 3XX)
Spanner (200154), 1 pc (for series 118-103/107, 389-514/714
Optional accessories
Connecting cables for Series 389
(excluding 389-514 and 389-714)
1m: 05CZA662
2m: 05CZA663
USB Input Tool Direct
USB-ITN-B (2m): 06ADV380B
SPC cables for U-WAVE, series 389
(excluding 389-514 and 389-714)
w/ data switch (160mm): 02AZD790B
For foot switch: 02AZE140B
Connecting cables for 389-514, 389-714
Recommended cables: L-Type (does not interfere with operating the thimble.)
1m: 04AZB512
2m: 04AZB513
Straight type (may interfere with operating the thimble.)
1m: 959149
2m: 959150
