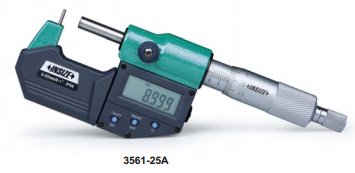

The INSIZE Digital Cylindrical Anvil Tube Micrometer (Code – 3561) is a precision measuring instrument engineered specifically for measuring the wall thickness of tubes. Featuring high-resolution digital readout, carbide spindle tips, and robust construction, it delivers reliable measurement accuracy for precision machining, quality control, and industrial metrology applications.
- Application: Designed specifically to measure wall thickness of tubes
- High Resolution: 0.001mm / 0.00005" precision display
- Protection Rating: IP65 dust and waterproof (IP54 referenced in supplementary data)
- Digital Functions: On/Off, Set, mm/inch conversion, and Data Transmit
- Data Output: Equipped for external data transmission
- Power Management: Automatic power off function; powered by CR2032 battery (with data interface) or built-in rechargeable lithium battery (wireless models)
- Measuring Mechanism: Ratchet stop for consistent measuring force and carbide spindle tips for enhanced wear resistance
- Calibration Standards: Supplied with setting standards (except for 0-25mm/0-1" range models)
Model Range & Specifications (With Data Interface)
Anvil Types (A, B, C, D, E, F) Dimensions
- Type A: Anvil pin diameter Ø1.8mm, extension 8mm
- Type B: Anvil pin diameter Ø3.5mm, extension 8mm
- Type C: Anvil diameter Ø8mm
- Type D: Anvil pin diameter Ø4.7mm, height 16mm
- Type E: Anvil pin diameter Ø4.7mm, height 27.5mm
- Type F: Anvil diameter Ø8mm, height 27.5mm
Optional & Built-in Wireless Accessories
- Data Output Cable (For models with data interface): Code 7315-31 (receiver 7302-31 is required)
- Built-in Wireless Models: Add suffix "WL" to original codes (e.g., Code 3561-25AWL, 3561-25BAWL). Compatible with receiver codes 7315-2/3/6/7/8/9 as needed.
