MITUTOYO-SERIES 156-MICROMETER STANDS

Name: MITUTOYO-SERIES 156-MICROMETER STANDS
Brand: MITUTOYO
SKU: 156-101-10

Code:

Designed to allow benchtop use of hand micrometers or other gages which have frames suitable for gripping by the clamp. SPECIFICATIONS Order No. Micrometer ranges Remarks 156-101-10 Up to 100mm (4″)* Adjustable angle type 156-105-10 0-25mm (0-1″), 25-50mm (1″-2″) Fixed angle type 156-102 125-300mm (5″-12″) Vertical type 156-103 300-1000mm (12″-40″) Vertical type * Items that cannot

f in

Click to Expand

MITUTOYO-SERIES 156-MICROMETER STANDS

Product Overview

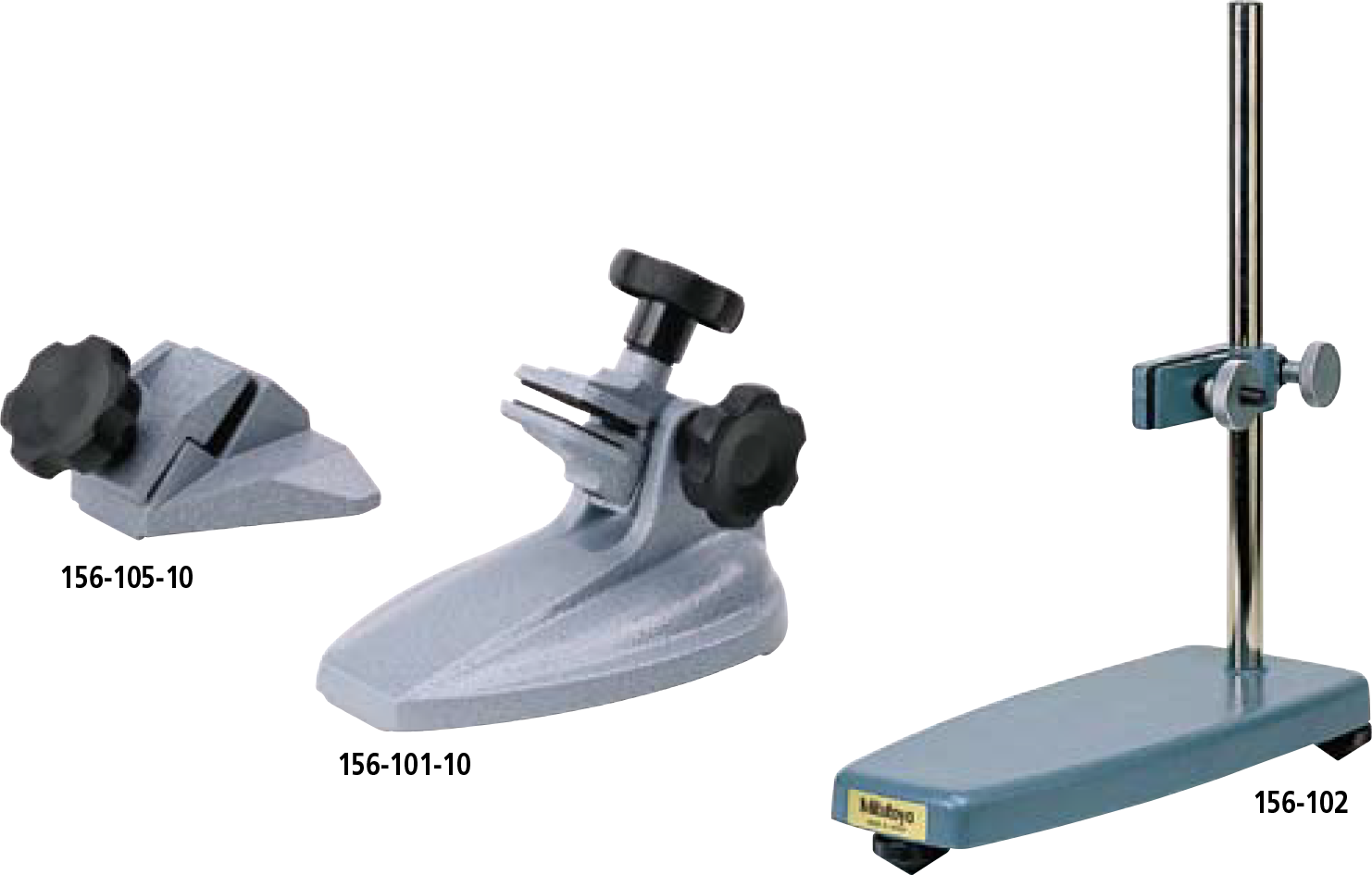

The Mitutoyo Series 156 Micrometer Stands are designed to facilitate benchtop use of hand micrometers and other gauges featuring frames suitable for clamp gripping. This product line provides stable benchtop mounting solutions across various configurations, including adjustable angle, fixed angle, and vertical types, catering to micrometer ranges from 0-25mm (0-1″) up to 300-1000mm (12″-40″).

Key Features & Capabilities

Benchtop Operation: Enables stationary workbench use of handheld micrometers and compatible gauges.
Versatile Mounting Options: Available in adjustable angle, fixed angle, and vertical configurations to suit different measurement requirements.
Compatibility: Accommodates hand micrometers and compatible gages within specified measurement ranges.
Exclusions: Certain models (e.g., Order Nos. 406-253-30, 323-253-30, 331-254-30, 342-254-30, 342-264-30, 369-253-30, 422-232-30, 422-233-30, etc.) cannot be mounted on these stands.

Technical Specifications

Order No.	Micrometer Ranges	Remarks
156-101-10	Up to 100mm (4″)*	Adjustable angle type
156-105-10	0-25mm (0-1″), 25-50mm (1″-2″)	Fixed angle type
156-102	125-300mm (5″-12″)	Vertical type
156-103	300-1000mm (12″-40″)	Vertical type

\Note: Specific items that cannot be mounted on these stands include Order Nos. 406-253-30, 323-253-30, 331-254-30, 342-254-30, 342-264-30, 369-253-30, 422-232-30, 422-233-30, etc.*
