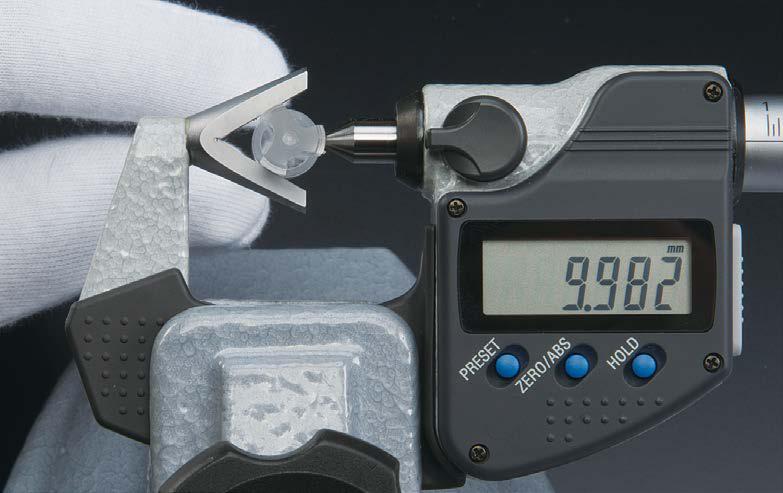

- Measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three or five flutes.
- Measures pitch diameter: refer to “Quick Guide to Precision Measuring Instruments” on page B-73.
- Measuring faces: Carbide
- Equipped with Ratchet Stop for constant measuring force.
SPECIFICATIONS
Metric For 3-flute cutting tools
Order No. | Range | Resolution | Accuracy* | Remarks | Anvil |
---|---|---|---|---|---|
Digimatic (LCD) | |||||
314-251-30 | 1 – 15mm |
0.001mm |
±4µm | w/groove |
60° |
314-252-30 | 10 – 25mm | ||||
314-253-30 | 25 – 40mm | ±5µm | — | ||
314-261-30 | 1 – 15mm | ±4µm | — | ||
314-262-30 | 10 – 25mm | — |
* Excluding quantizing error
Inch/Metric For 3-flute cutting tools
Order No. | Range | Resolution | Accuracy* | Remarks | Anvil |
---|---|---|---|---|---|
Digimatic (LCD) | |||||
314-351-30 | .05 – .6″ |
.00005″/ 0.001mm |
±.0002″ | w/groove |
60° |
314-352-30 | .4″ – 1″ | ||||
314-353-30 | 1″ – 1.6″ | ±.00025″ | — | ||
314-361-30 | .05 – .6″ | ±.0002″ | — | ||
314-362-30 | .4″ – 1″ | — |
* Excluding quantizing error
Metric For 3-flute cutting tools
Order No. | Range | Graduation | Accuracy | Remarks | Anvil |
---|---|---|---|---|---|
Analog Anvil, Spindle (With carbide tip) | |||||
114-204 | 2.3 – 25mm | ±4µm — | |||
Analog Spindle (With carbide tip) | |||||
114-101 | 1 – 15mm |
0.01mm |
±4µm | w/groove |
60° |
114-102 | 10 – 25mm | ||||
114-103 | 25 – 40mm | ±5µm | — | ||
114-104 | 40 – 55mm | ±6µm | — | ||
114-105 | 55 – 70mm | — | |||
114-106 | 70 – 85mm | ±7µm | — | ||
114-161 | 1 – 15mm | ±4µm | — | ||
114-162 | 10 – 25mm | — |
Inch For 3-flute cutting tools
Order No. | Range | Graduation | Accuracy | Remarks | Anvil |
---|---|---|---|---|---|
Analog Spindle (With carbide tip) | |||||
114-163 | .05″ – .6″ | .001″ | ±.0002″ | — | 60° |
114-113 | 1″ – 1.6″ | ±.00025″ | — |
Metric For 5-flute cutting tools
Order No. | Range | Resolution | Accuracy | Remarks | Anvil |
---|---|---|---|---|---|
Analog Anvil, Spindle (With carbide tip) | |||||
114-137 | 2.3 – 25mm | ±4µm — | |||
Analog Spindle (With carbide tip) | |||||
114-121 | 5 – 25mm |
0.01mm |
±4µm | w/groove |
108° |
114-122 | 25 – 45mm | ±5µm | — | ||
114-123 | 45 – 65mm | ±6µm | — | ||
114-124 | 65 – 85mm | ±7µm | — | ||
114-165 | 5 – 25mm | ±4µm | — |
Inch For 5-flute cutting tools
Order No. | Range | Graduation | Accuracy | Remarks | Anvil |
---|---|---|---|---|---|
Analog Spindle (With carbide tip) | |||||
114-135 | .09″ – 1″ | .0001″ | ±.0002″ | — | 108° |
DIMENSIONS
Battery for series 314
SR44 (1 pc), 938882, for initial operational checks
(standard accessory)
Battery life: Approx. 2.4 years under normal use
(for series 314)
Length standard: Electromagnetic rotary sensor
(for series 314)
Standard accessories:
Spanner (301336), 1 pc
(for Digimatic type)
(Maximum measuring range up to 55mm/1.6″)*1
(Maximum measuring range up to 45mm/1″)*2
Spanner (200877), 1 pc
(for maximum measuring range 70mm or over)*1
(for maximum measuring range 65mm or over)*2
*1 For analog type with 3-flute cutting tools.
*2 For analog type with 5-flute cutting tools.
Optional accessories
Connecting cables for series 314
1m: 05CZA662
2m: 05CZA663
USB Input Tool Direct
USB-ITN-B (2m): 06ADV380B
SPC cables for U-WAVE w/ data switch (160mm): 02AZD790B
For foot switch: 02AZE140B
(Refer to page B-68 for details.)
