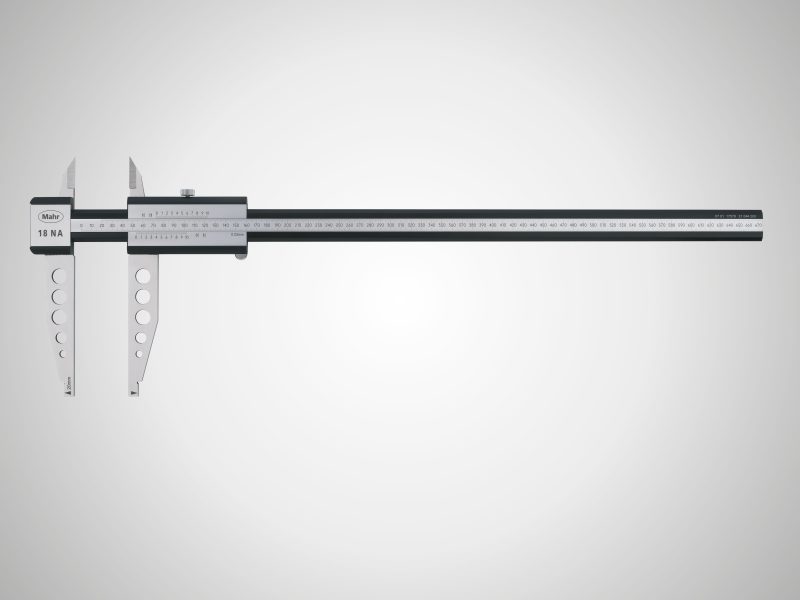

MARCAL 18 NA WORKSHOP CALIPERS

MARCAL 18 NA WORKSHOP CALIPERS

To reduce the overall weight the slide and beam are made from aluminum and are coated with a hard anodized surface coating (1100 HV) Vernier and main scale have a satin chrome finish for glare free reading Parallax free reading Locking screw above Prisma guideway for a more smooth and even movement Measuring surfaces made

To reduce the overall weight the slide and beam are made from aluminum and are coated with a hard anodized surface coating (1100 HV)
Vernier and main scale have a satin chrome finish for glare free reading
Parallax free reading
Locking screw above
Prisma guideway for a more smooth and even movement
Measuring surfaces made of steel
Measuring blades for outside measurements
up to 1000 mm delivered with a case, over 1000 mm individually packed

Technical data

Order no.	Measuring range mm	Readings mm	Error limit (mm)	Standard
4112300	0 – 300	0.02 mm	0.04 mm	Factory standard
4112301	0 – 500	0.02 mm	0.05 mm	Factory standard
4112302	0 – 800	0.02 mm	0.07 mm	Factory standard
4112303	0 – 1000	0.02 mm	0.08 mm	Factory standard
4112304	0 – 1500	0.02 mm	0.16 mm	Factory standard
4112305	0 – 2000	0.02 mm	0.16 mm	Factory standard
