INSIZE WATERPROOF DIGITAL OUTSIDE MICROMETERS – WITHOUT DATA OUTPUT (CODE – 3108)

Code:

▪Resolution 0.01mm/0.0005"
▪IP65 dust/waterproof
▪Button function : on /off, set, mm/inch, ABS/INC
▪No data Output
▪Automatic power off
▪Carbide measuring faces
▪Supplied with spherical anvil
▪Setting standards are included (except 0-25mm/0-1")

Click to Expand

INSIZE WATERPROOF DIGITAL OUTSIDE MICROMETERS – WITHOUT DATA OUTPUT (CODE – 3108)

Product Overview

The INSIZE Waterproof Digital Outside Micrometers (Code 3108) are precision measuring instruments designed for accurate exterior dimensional verification in industrial environments. Featuring an IP65 rating for dust and water resistance, carbide measuring faces, and a spherical anvil, these micrometers deliver reliable performance without data output functionality.

Key Features & Capabilities

Digital Resolution: 0.001mm / 0.0005"
Ingress Protection: IP65 dust and waterproof rating
Button Functions: On/off, set, mm/inch, ABS/INC
Power Management: Automatic power off functionality
Contact Surfaces: Carbide measuring faces
Special Features: Supplied with a spherical anvil
Calibration Standards: Setting standards included (Note: excluded on the 0-25mm/0-1" model)
Inspection Certificate: Supplied with manufacturer inspection certificate

---

Technical Specifications

Ratchet Stop Type

Code	Range	Accuracy	L (mm)	a (mm)	b (mm)	c (mm)
3108-25A\*	0-25mm/0-1"	±2µm	34.5	6	25	3
3108-50A\*	25-50mm/1-2"	±2µm	59.5	8	28	3
3108-75A\*	50-75mm/2-3"	±3µm	84.5	8	44.5	3

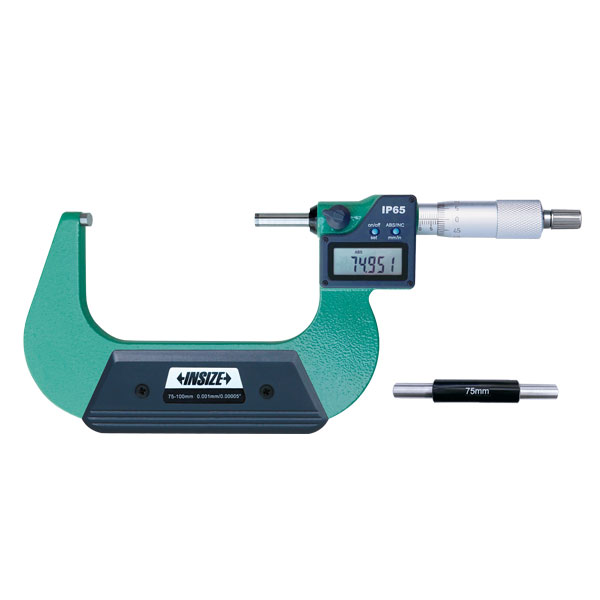

3108-100A\*	75-100mm/3-4"	±3µm	109.5	8	57	3
3108-125A	100-125mm/4-5"	±3µm	135	10	70	3
3108-150A	125-150mm/5-6"	±3µm	160.5	10	82	3
3108-175A	150-175mm/6-7"	±4µm	186	12	94.5	5.5

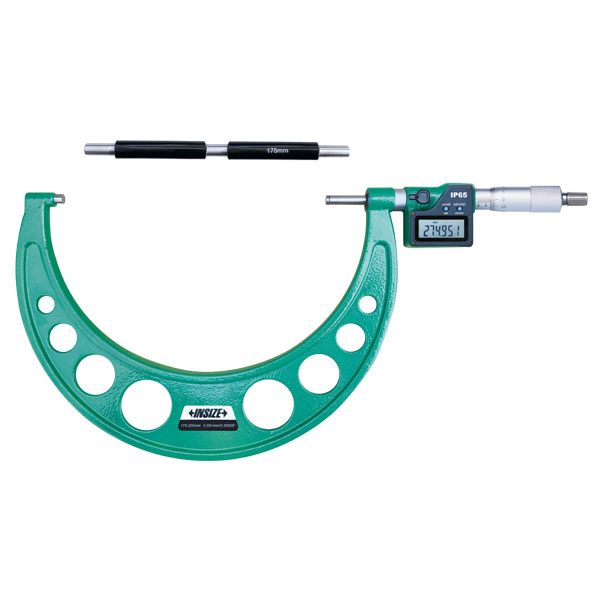

3108-200A	175-200mm/7-8"	±4µm	211.5	12	107	5.5

Friction Thimble Type

Code	Range	Accuracy	L (mm)	a (mm)	b (mm)	c (mm)
3108-25FA\*	0-25mm/0-1"	±2µm	34.5	6	25	3

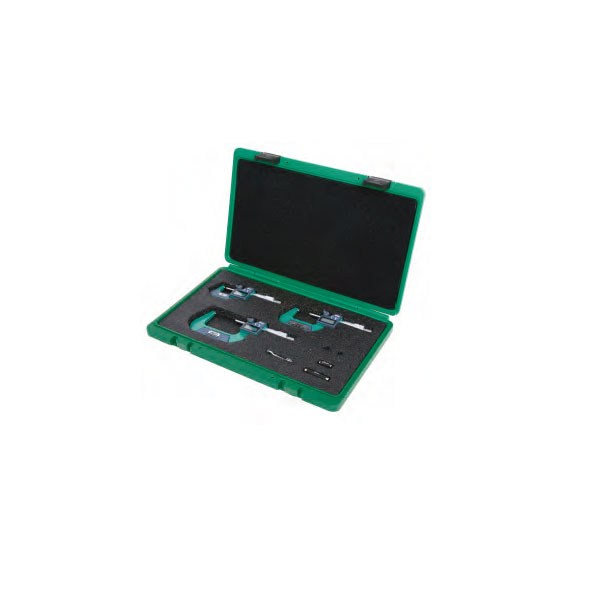

Micrometer Sets

Code	Range	Micrometers Included	Packaging
3108-753A\*	0-75mm/0-3"	3108-25A, 3108-50A, 3108-75A	Blow mould case
3108-1004A\*	0-100mm/0-4"	3108-25A, 3108-50A, 3108-75A, 3108-100A	Blow mould case
3108-1506A	0-150mm/0-6"	3108-25A, 3108-50A, 3108-75A, 3108-100A, 3108-125A, 3108-150A	Aluminum box

\Supplied with manufacturer inspection certificate*
