• Wide measuring range with interchangeable anvils.
  • Measuring face of the spindle is carbide tipped (standard model).
  • IP 65 water/dust protection (series 340). * Models with a measuring range up to 300mm.
  • Equipped with Ratchet Stop for constant measuring force.

Anvils Outside Micrometers

SPECIFICATIONS

Metric

Order No.

Range



Resolution



Interchangeable anvils

 Setting Standard

Micrometer head stroke
Qty Size
Digimatic  (LCD)
340-251-30 0 – 150mm









0.001mm



6pcs.

 5 25-125mm









25mm
340-252-30 150 – 300mm 6 150-275mm
340-520 300 – 400mm







4pcs.







4

 300-375mm
340-521 400 – 500mm 400-475mm
340-522 500 – 600mm 500-575mm
340-523 600 – 700mm 600-675mm
340-524 700 – 800mm 700-775mm
340-525 800 – 900mm 800-875mm
340-526 900 – 1000mm 900-975mm

Inch/Metric



Order No.



Range



Resolution



Interchangeable anvils

 Setting Standard

Micrometer head stroke
Qty Size
Digimatic  (LCD)



340-251-30



0  – 6″

.00005″/

0.001mm







6pcs.



5



1″-  5″







1″
340-252-30 6″ – 12″





.0001″/

0.001mm





6

 6″- 11″
340-720 12″ – 18″ 12″- 17″
340-721 18″ – 24″ 18″- 23″
340-722 24″ – 30″ 24″- 29″
340-723 30″ – 36″ 30″- 35″

Metric



Order No.



Range



Graduation



Interchangeable anvils

 Setting Standard

Micrometer head stroke
Qty Size
Analog
104-171* 0 – 50mm













0.01mm

 1pcs. 1 25mm















25mm
104-139A 0 – 100mm 4pcs. 3 25-75mm
104-135A 0 – 150mm 6pcs. 5 25-125mm
104-161A 50 – 150mm



4pcs.



4

 50-125mm
104-140A 100 – 200mm 100-175mm
104-136A 150 – 300mm 6pcs. 6 150-275mm
104-141A 200 – 300mm







4pcs.







4

 200-275mm
104-142A 300 – 400mm 300-375mm
104-143A 400 – 500mm 400-475mm
104-144A 500 – 600mm 500-575mm
104-145A 600 – 700mm 600-675mm
104-146A 700 – 800mm 700-775mm
104-147A 800 – 900mm 800-875mm
104-148A 900 – 1000mm 900-975mm

Inch



Order No.



Range



Interchangeable anvils



Graduation

 Setting Standard

Micrometer head stroke
Qty Size
Analog
104-165 0  – 2″ 1pcs. .0001″ 1 1″
104-149 0  – 4″ 4pcs.

















.001″

 3 1″ – 3″
104-137 0  – 6″ 6pcs. 5 1″ – 5″
104-162 2″ – 6″



4pcs.



4

 2″ – 5″
104-150 4″ – 8″ 4″ – 7″
104-138 6″ – 12″ 6pcs. 6 6″ – 11″
104-151 8″ – 12″



4pcs.



4

 8″ – 11″
104-152 12″ – 16″ 12″ – 15″
104-201 12″ – 18″ 6pcs. 6 12″ – 17″
104-153 16″ – 20″ 4pcs. 4 16″ – 19″
104-202 18″ – 24″ 6pcs. 6 18″ – 23″
104-154 20″ – 24″



4pcs.



4

 20″ – 23″
104-155 24″ – 28″ 24″ – 27″
104-203 24″ – 30″ 6pcs. 6 24″ – 29″
104-156 28″ – 32″ 4pcs. 4 28″ – 31″
104-204 30″ – 36″ 6pcs. 6 30″ – 35″
104-157 32″ – 36″



4pcs.



4

 32″ – 35″
104-158 36″ – 40″ 36″ – 39″
104-205 36″ – 42″ 6pcs. 6 36″ – 41″

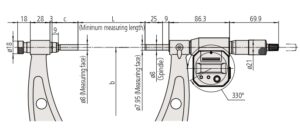

DIMENSIONS

Anvils Outside Micrometers

  L : Range (mm)
Range 0 to 150mm models 0 – 25 25 – 50 50 – 75 75 – 100 100 – 125 125 – 150
Range 150 to 300mm models 150 – 175 175 – 200 200 – 225 225 – 250 250 – 275 275 – 300
Order No. 303950 303951 303952 303953 303954 303955
c: Overall length (mm) 135 110 85 60 35 10
Interchangeable  anvil M1 M2 M3 M4 M5 M6



  L : Range (mm)
Range 300 to 400mm models 300 – 325 325 – 350 350 – 375 375 – 400
Range 400 to 500mm models 400 – 425 425 – 450 450 – 475 475 – 500
Range 500 to 600mm models 500 – 525 525 – 550 550 – 575 575 – 600
Range 600 to 700mm models 600 – 625 625 – 650 650 – 675 675 – 700
Range 700 to 800mm models 700 – 725 725 – 750 750 – 775 775 – 800
Range 800 to 900mm models 800 – 825 825 – 850 850 – 875 875 – 900
Range 900 to 1000mm models 900 – 925 925 – 950 950 – 975 975 – 1000
Order No. 304001 304002 304003 304004
c: Overall length (mm) 87 62 37 12
Interchangeable  anvil M3 M4 M5 M6



Anvils Outside Micrometers

  L : Range (mm) b d
Range 300 to 400mm models 300 – 325 325 – 350 350 – 375 375 – 400 224 425
Range 400 to 500mm models 400 – 425 425 – 450 450 – 475 475 – 500 273 525
Range 500 to 600mm models 500 – 525 525 – 550 550 – 575 575 – 600 332 625
Range 600 to 700mm models 600 – 625 625 – 650 650 – 675 675 – 700 382 725
Range 700 to 800mm models 700 – 725 725 – 750 750 – 775 775 – 800 430 825
Range 800 to 900mm models 800 – 825 825 – 850 850 – 875 875 – 900 480 925
Range 900 to 1000mm models 900 – 925 925 – 950 950 – 975 975 – 1000 530 1025
Order No. 304001 304002 304003 304004
c: Overall (mm) 87 62 37 12
Interchangeable  anvil M3 M4 M5 M6



IP Codes (series 340)
Level 6: Dust -proof. No ingress of dust allowed.
Level 5: Protected against water jets. Water projected in jets against the enclosure from any direction shall have no harmful effects.
Technical Data
Flatness:
0.6μm/ .000024” for models up to 300mm/ 12”
1.0μm/ .00004” for models over 300mm/ 12”
Parallelism:
2μm/ .00008” for models up to 75mm/ 3”
3μm/ .00012” for models up to 150mm/ 6”
(2+R/100)μm for models over 150mm,
R=max. range (mm)
Fraction rounded up
±[.00008” + .00004 (R/4)]” For models over 6”
R= max. range (inch)
Fraction rounded up
Accuracy:
±(4+R/75)µm, R = max. range (mm)
±[.00016”+.00004(R/3)]” R = max. range (inch)
(excluding quantizing error for digital models)
Fraction rounded up
Excluding quantizing errorAnvils Outside Micrometers

Battery for series 340
SR44 (1 pc), 938882, for initial operational checks (standard
accessory)
Battery life: Approx. 2.4 years under normal use (for series 340-2XX)
Approx. 1.8 years under normal use (for series 340-5XX, 340-7XX)
Length standard: Electromagnetic rotary sensor (for series 340)
Standard accessories: Spanner (301336), 1 pc
(for maximum measuring range up to 300mm (12″))
Spanner (200154), 1 pc (for maximum measuring range 400mm (16″) or over)
Optional accessories
Connecting cables for 340-251-30 & 340-252-30, 340-351-30 & 340-252-30
1m: 05CZA662
2m: 05CZA663
USB Input Tool Direct
USB-ITN-B (2m): 06ADV380B
SPC cables for U-WAVE w/ data switch (160mm): 02AZD790B
For foot switch: 02AZE140B
Connecting cables for 340-520/1/2/3/4/5/6, 340-720/1/2/3 models
Recommended cables:
L-Type (does not interfere with operating the thimble.)
1m: 04AZB512
2m: 04AZB513
Straight type (may interfere with operating the thimble.)
1m: 959149
2m: 959150
