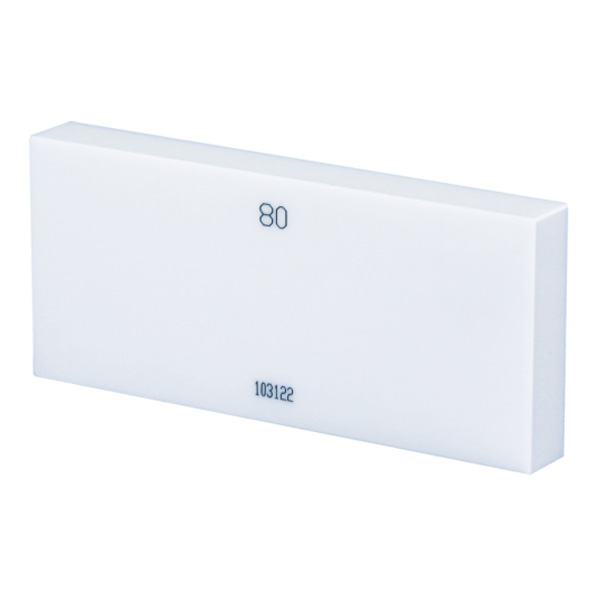

INSIZE CERAMIC SLIP GAGE BLOCK INDIVIDUAL & SET (CODE – 4105 / 4106)

Product Overview

The INSIZE Ceramic Slip Gage Block Sets and Individual Blocks (Codes 4105 and 4106) are precision measurement standards engineered from advanced ceramic material. Designed for dimensional verification and calibration applications in metrology and manufacturing environments, these gage blocks deliver superior durability, dimensional stability, and resistance to environmental wear. Available in both complete sets (Code 4105) and individual blocks (Code 4106), the series includes Grade 0 and Grade 1 accuracy classes in compliance with ISO3650 standards.

Key Features & Capabilities

Material Composition: Fabricated from high-grade ceramic providing extreme wear resistance and corrosion resistance.
Dimensional Stability: Exhibits excellent dimensional stability for long-term calibration reliability.
Standards Compliance: Conforms strictly to ISO3650 standards.
Grade Availability: Available in Grade 0 and Grade 1 accuracy classifications.
Certification: Supplied with a manufacturer inspection certificate.

Technical Specifications

Dimensions

Size ($L$)	Width ($W$)	Height ($H$)
$0.5 \le L \le 10\text{mm}$	$9\text{mm}$	$30\text{mm}$
$L > 10\text{mm}$	$9\text{mm}$	$35\text{mm}$

Gage Block Set Configurations (Code 4105)

Blocks per set	Gage blocks included in set: Size ($\text{mm}$) / Step ($\text{mm}$) / Quantity	Code (Grade 0 / Grade 1)
112	1.0005 (Qty: 1)<br>1.0001-1.009, Step: 0.001 (Qty: 9)<br>1.01-1.49, Step: 0.01 (Qty: 49)<br>0.5-24.5, Step: 0.5 (Qty: 49)<br>25-100, Step: 25 (Qty: 4)	4105-112 / 4105-112 (Grade specific)
103	1.005 (Qty: 1)<br>1.01-1.49, Step: 0.01 (Qty: 49)<br>0.5-24.5, Step: 0.5 (Qty: 49)<br>25-100, Step: 25 (Qty: 4)	4105-103 / 4105-103
88	1.0005 (Qty: 1)<br>1.001-1.009, Step: 0.001 (Qty: 9)<br>1.01-1.49, Step: 0.01 (Qty: 49)<br>0.5-9.5, Step: 0.5 (Qty: 19)<br>10-100, Step: 10 (Qty: 10)	4105-88 / 4105-188
87	1.001-1.009, Step: 0.001 (Qty: 9)<br>1.01-1.49, Step: 0.01 (Qty: 49)<br>0.5-9.5, Step: 0.5 (Qty: 19)<br>10-100, Step: 10 (Qty: 10)	4105-87 / 4105-187
76	1.005 (Qty: 1)<br>1.01-1.49, Step: 0.01 (Qty: 49)<br>0.5-9.5, Step: 0.5 (Qty: 19)<br>10-40, Step: 10 (Qty: 4)<br>50-100, Step: 25 (Qty: 3)	4105-76 / 4105-176
56	0.5 (Qty: 1)<br>1.001-1.009, Step: 0.001 (Qty: 9)<br>1.01-1.09, Step: 0.01 (Qty: 9)<br>1.1-1.9, Step: 0.1 (Qty: 9)<br>1-24, Step: 1 (Qty: 24)<br>25-100, Step: 25 (Qty: 4)	4105-56 / 4105-156
47	1.005 (Qty: 1)<br>1.01-1.09, Step: 0.01 (Qty: 9)<br>1.1-1.9, Step: 0.1 (Qty: 9)<br>1-24, Step: 1 (Qty: 24)<br>25-100, Step: 25 (Qty: 4)	4105-47A / 4105-147A
47	1.005 (Qty: 1)<br>1.01-1.19, Step: 0.01 (Qty: 19)<br>1.2-1.9, Step: 0.1 (Qty: 8)<br>1-9, Step: 1 (Qty: 9)<br>10-100, Step: 10 (Qty: 10)	4105-47 / 4105-147
46	1.001-1.009, Step: 0.001 (Qty: 9)<br>1.01-1.09, Step: 0.01 (Qty: 9)<br>1.1-1.9, Step: 0.1 (Qty: 9)<br>1-9, Step: 1 (Qty: 9)<br>10-100, Step: 10 (Qty: 10)	4105-46 / 4105-146
34	1.0005 (Qty: 1)<br>1.001-1.009, Step: 0.001 (Qty: 9)<br>1.01-1.09, Step: 0.01 (Qty: 9)<br>1.1-1.9, Step: 0.1 (Qty: 9)<br>1-5, Step: 1 (Qty: 5)<br>10 (Qty: 1)	4105-34 / 4105-134
32	1.0005 (Qty: 1)<br>1.01-1.09, Step: 0.01 (Qty: 9)<br>1.1-1.9, Step: 0.1 (Qty: 9)<br>1-9, Step: 1 (Qty: 9)<br>10-30, Step: 10 (Qty: 3)<br>50 (Qty: 1)	4105-32 / 4105-132
