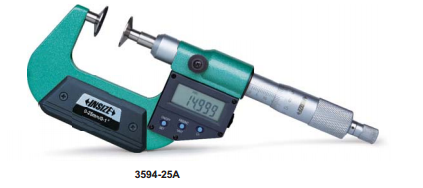

The INSIZE Digital Non-Rotating Spindle Disk Micrometer (Code 3594 series) is a precision measuring instrument designed specifically to measure the root tangent length of gears. Featuring a non-rotating spindle and precision disk anvils, this digital micrometer provides high-resolution measurement with data transmission capabilities. Available across multiple range variants from 0-100mm, each unit is supplied with setting standards to ensure measurement accuracy.
- Primary Application: Measure root tangent length of gear
- High Resolution: 0.001mm / 0.00005"
- Spindle Design: Non-rotating spindle to prevent rotational wear on measured surfaces
- Control Functions: On/off, set, mm/inch, and data transmit buttons
- Data Connectivity: Built-in data output feature (optional data output cable code 7315-31 receiver needed, or code 3594-□□□WL for built-in wireless models requiring receiver 7315-2/3/6/7/8/9)
- Power Management: Automatic power off function; powered by CR2032 battery (or rechargeable lithium battery for built-in wireless models)
- Measurement Control: Equipped with a ratchet stop for consistent, repeatable measuring force
- Calibration Support: Supplied with setting standards
Range & Accuracy Specifications
Model Codes & Ordering Information
- Standard Data Output Models:
- 3594-25A (Range: 0-25mm / 0-1")
- 3594-50A (Range: 25-50mm / 1-2")
- 3594-75A (Range: 50-75mm / 2-3")
- 3594-100A (Range: 75-100mm / 3-4")
- Built-in Wireless Models:
- 3594-25AWL (Original code: 3594-25A)
- 3594-50AWL (Original code: 3594-50A)
- Optional Accessories:
- Data output cable (Code 7315-31)
