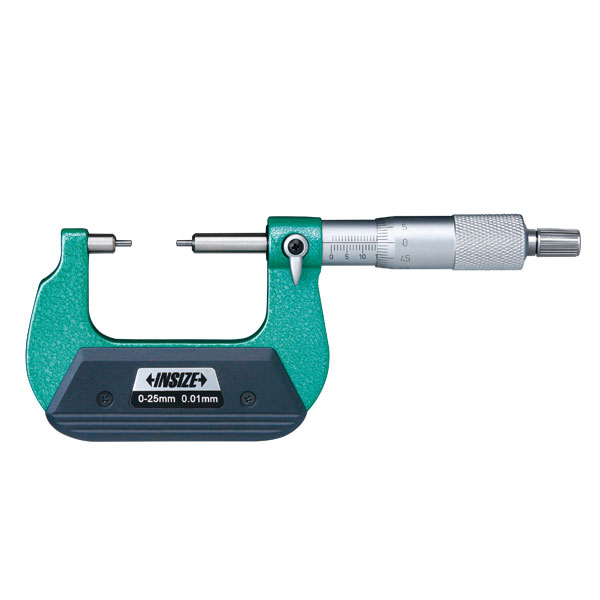

spline micrometer

  • Measure splined shafts, slots and keyways
  • Graduation 0.01mm
  • Ratchet stop
  • Carbide measuring faces

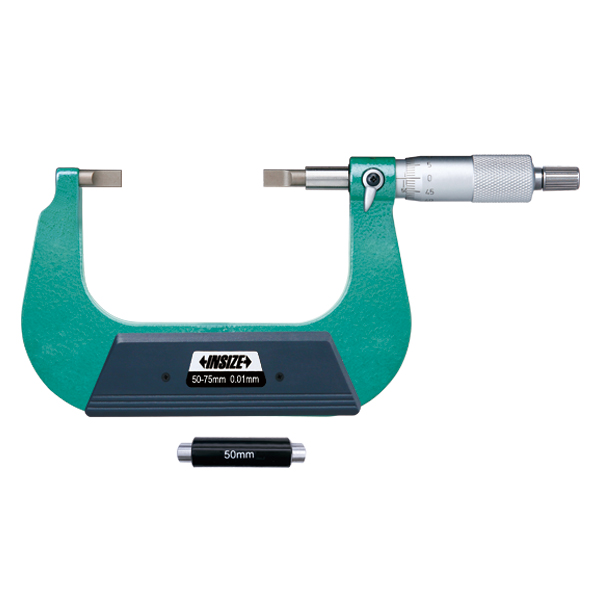

  • Supplied with setting standards (except 0-25mm)



spline micrometer-3233_2



Code Range Type Accuracy L b
3233-25A 0-25mm A 4μm 57 32 57
3233-25BA 0-25mm B 4μm 57 32
3233-50BA 25-50mm B 4μm 82 44.5
3233-75BA 50-75mm B 5μm 107 57
3233-100BA 75-100mm B 5μm 132.6 69.5
3233-125BA 100-125mm B 6μm 158 82
3233-150BA 125-150mm B 6μm 183.4 94.5
3233-175BA 3 150-175mm B 7μm 208.8 107
