INTERNAL CHAMFER GAGE CODE 2941

Name: INTERNAL CHAMFER GAGE CODE 2941
Brand: INSIZE
SKU: 2941

Code:

Measure end diameter of chamfer or taper holes With limit pointers Code Range Graduation Accuracy ØD α 2941-20 0.5-20.1mm 0.01mm 0.02mm 28.3 90° 2941-40 20-40mm 0.01mm 0.02mm 50 90° 2941-203 0.5-20.1mm 0.02mm 0.02mm 28.3 127° 2941-403 20-40mm 0.02mm 0.02mm 50 127°

f in

Click to Expand

INTERNAL CHAMFER GAGE CODE 2941

Product Overview

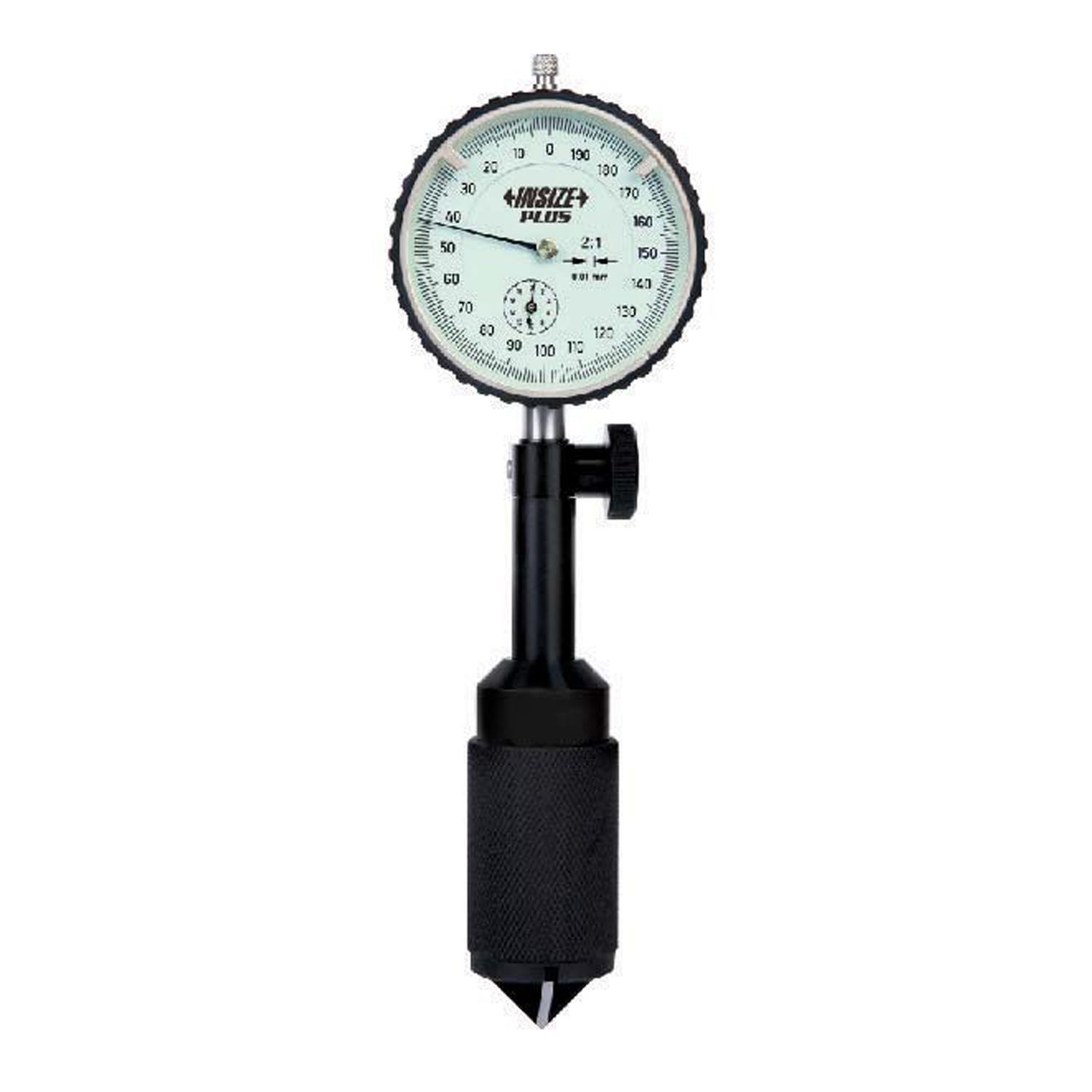

The INSIZE Internal Chamfer Gage (Code 2941) is a precision measuring instrument designed for accurately determining the end diameter of chamfer or taper holes. Available in multiple variants supporting different measurement ranges and angle configurations, it features integrated limit pointers for efficient batch verification.

Key Features & Capabilities

Designed specifically for measuring the end diameter of chamfer and taper holes
Equipped with integrated limit pointers for tolerance checking
Available in $90^\circ$ and $127^\circ$ angle configurations
Covers measurement ranges from 0.5mm up to 40mm depending on the model code

Technical Specifications

Code	Range	Graduation	Accuracy	ØD	α (Angle)
2941-20	0.5-20.1mm	0.01mm	0.02mm	28.3	90°
2941-40	20-40mm	0.01mm	0.02mm	50	90°
2941-203	0.5-20.1mm	0.02mm	0.02mm	28.3	127°
2941-403	20-40mm	0.02mm	0.02mm	50	127°
