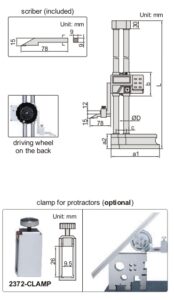

The INSIZE Digital Height Gages (Code – 1151) are precision measuring instruments constructed from durable stainless steel and equipped with a carbide-tipped scriber. Designed for accurate vertical measurements, this series features a dual-column structure, smooth driving wheel operation, and a digital display unit offering dual-unit measurements (mm/inch). Available in three distinct models covering ranges up to 600mm / 24", the instruments support absolute and incremental measurement modes with data output capabilities.
- Construction & Build: Manufactured from stainless steel with a carbide-tipped scriber for enhanced wear resistance and durability.
- Display & Resolution: High-precision digital display with a resolution of 0.01mm / 0.001".
- Functional Controls: Features push buttons for on/off, zero-setting, mm/inch conversion, data hold, ABS/INC (absolute and incremental measurement), and preset functions.
- Power Management: Equipped with automatic power off; moving the digital unit automatically turns the power back on. Powered by a CR2032 battery.
- Operational Features: Includes a built-in driving wheel for smooth positioning and data output functionality.

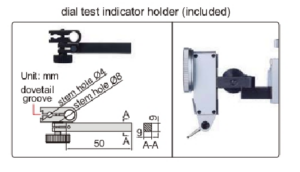

- Included Accessories: Dial test indicator holder and dust cover supplied as standard.
- Environmental Rating: Non-waterproof design.
- Data Output Cable (Keyboard format / code 7302-1151)
- Wireless Transmitter (Code 7315-1151)
- Clamp for Protractors (Code 2372-CLAMP)
