Spindle face: Carbide

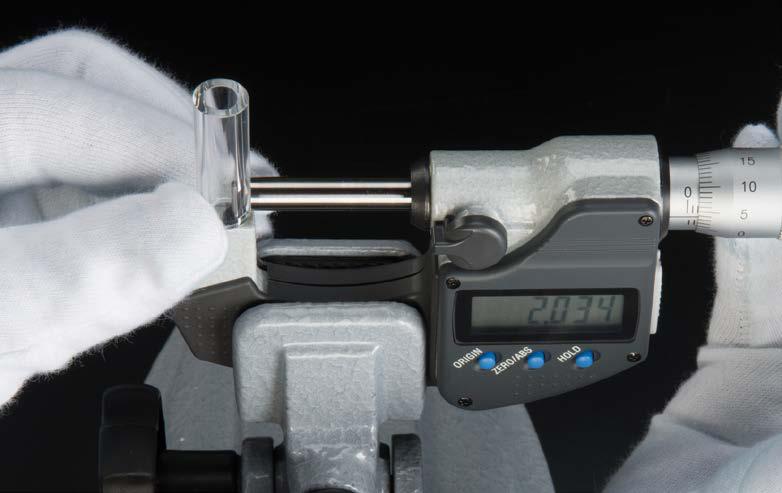

series 395: IP65 spherical and cylindrical anvil type digital micrometers
Equipped with Ratchet Stop for constant measuring force.

Tube Micrometers

SPECIFICATIONS

Metric

Order No. Range Resolution Accuracy* Remarks
Digimatic  (LCD)
395-261-30



0 – 25mm



0.001mm



±3µm

Type A
395-262-30 Type B
395-263-30 Type C
395-264-30 Type D

* Excluding quantizing error
Inch/Metric

Order No. Range Resolution Accuracy* Remarks
Digimatic  (LCD)
395-362-30



0 – 1″

.00005″/

0.001mm



±.00015″

Type B
395-363-30 Type C
395-364-30 Type D

* Excluding quantizing error

Metric

Order No. Range Graduation Accuracy Remarks
Analog
115-302 0 – 25mm





0.01mm





±3µm

Type A
115-308 Type B
115-303 25 – 50mm Type A
115-309 Type B
115-315 0 – 25mm Type C
115-316 Type D

Inch

Order No. Range Graduation Accuracy Remarks
Analog
115-305



0 – 1″

.001″



±.00015″

Type A
115-313 .0001″ Type C
115-314 Type D

IP Codes (series 395)
Level 6: Dust-proof.
No ingress of dust allowed.
Level 5: Protected against water jets.
Water projected in jets against the enclosure
from any direction shall have no harmful effects.

Tube Micrometers Tube Micrometers

Battery for series 395

SR44 (1 pc), 938882, for initial operational checks
(standard accessory)
Battery life: Approx. 2.4 years under normal use
(for series 395)

Length standard: Electromagnetic rotary sensor
(for series 395)
Standard accessories: Reference bar, 1 pc
(except for measuring range 0-25mm (0-1″) models)
Spanner (301336), 1 pc

Optional accessories
Connecting cables for series 395

1m: 05CZA662
2m: 05CZA663
USB Input Tool Direct
USB-ITN-B (2m): 06ADV380B
Connecting cables for U-WAVE-T
02AZD790B 160mm
For foot switch: 02AZE140B
Refer to page B-68 for details.
