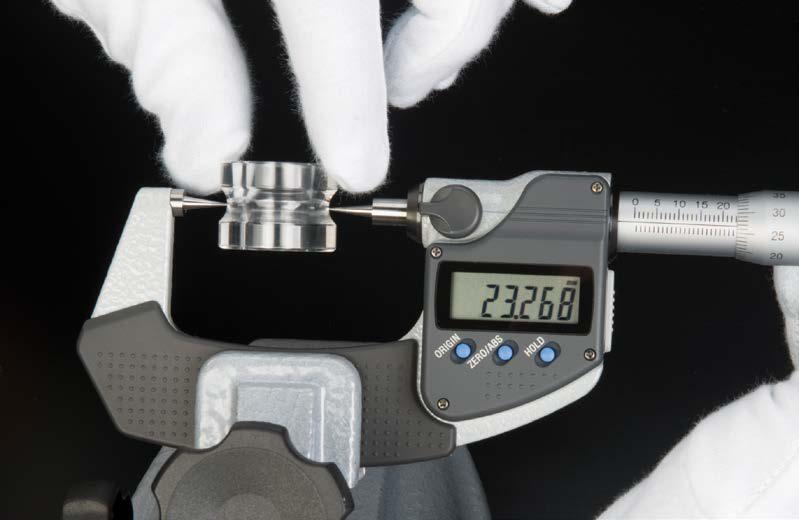

- Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach features.
- The measuring points (carbide tipped) have approximately 0.3mm radius.
- series 342: IP65 Digimatic micrometers
- Equipped with Ratchet Stop for constant measuring force.
SPECIFICATIONS
Metric
| Order No. | Range | Resolution | Accuracy* | Point |
|---|---|---|---|---|
| Digimatic (LCD) (With carbide tip) | ||||
| 342-251-30 | 0 – 25mm |
0.001mm |
±2µm |
15° |
| 342-252-30 | 25 – 50mm | |||
| 342-253-30 | 50 – 75mm | |||
| 342-254-30 | 75 – 100mm | ±3µm | ||
| 342-261-30 | 0 – 25mm |
±2µm |
30° |
|
| 342-262-30 | 25 – 50mm | |||
| 342-263-30 | 50 – 75mm | |||
| 342-264-30 | 75 – 100mm | ±3µm | ||
* Excluding quantizing error
Inch/Metric
| Order No. | Range | Resolution | Accuracy* | Point |
|---|---|---|---|---|
| Digimatic (LCD) (With carbide tip) | ||||
| 342-351-30 | 0 – 1″ |
.00005″/ 0.001mm |
±.0001″ |
15° |
| 342-352-30 | 1 – 2″ | |||
| 342-353-30 | 2 – 3″ | |||
| 342-354-30 | 3 – 4″ | ±.00015″ | ||
| 342-361-30 | 0 – 1″ |
±.0001″ |
30° |
|
| 342-362-30 | 1 – 2″ | |||
| 342-363-30 | 2 – 3″ | |||
| 342-364-30 | 3 – 4″ | ±.00015″ | ||
* Excluding quantizing error
Metric
| Order No. | Range | Graduation | Accuracy | Point |
|---|---|---|---|---|
| Analog | ||||
| 112-153 | 0 – 25mm |
±3µm |
15° |
|
| 112-154 | 25 – 50mm | |||
| 112-155 | 50 – 75mm | |||
| 112-156 | 75 – 100mm | ±4µm | ||
| 112-201 | 0 – 25mm |
±3µm |
30° |
|
| 112-202 | 25 – 50mm | |||
| 112-203 | 50 – 75mm | |||
| 112-204 | 75 – 100mm | ±4µm | ||
| Analog (With carbide tip) | ||||
| 112-165 | 0 – 25mm | 0.01mm |
±3µm |
15° |
| 112-166 | 25 – 50mm | |||
| 112-167 | 50 – 75mm | |||
| 112-168 | 75 – 100mm | ±4µm | ||
| 112-213 | 0 – 25mm |
±3µm |
30° |
|
| 112-214 | 25 – 50mm | |||
| 112-215 | 50 – 75mm | |||
| 112-216 | 75 – 100mm | ±4µm | ||
| Mechanical counter model | ||||
| 142-153 | 0 – 25mm | ±3µm | 15° | |
| 142-201 | 30° | |||
Inch
| Order No. | Range | Graduation | Accuracy | Point |
|---|---|---|---|---|
| Analog | ||||
| 112-177 | 0 – 1″ |
±.00015″ |
15° | |
| 112-178 | 1″ – 2″ | |||
| 112-225 | 0 – 1″ | 30° | ||
| 112-226 | 1″ – 2″ | |||
| Analog (With carbide tip) | ||||
| 112-189 | 0″ – 1″ |
.001″ |
±.00015″ |
15° |
| 112-190 | 1″ – 2″ | |||
| 112-191 | 2″ – 3″ | |||
| 112-237 | 0 – 1″ | 30° | ||
| 112-238 | 1″ – 2″ | |||
| Mechanical counter model | ||||
| 142-177 | 0 – 1″ | ±.00015″ | 15° | |
| 142-225 | 30° | |||
DIMENSIONS
IP Codes (series 342)
Level 6: Dust-proof.
No ingress of dust allowed.
Level 5: Protected against water jets.
Water projected in jets against the enclosure
from any direction shall have no harmful effects.
Technical Data
Battery for series 342
SR44 (1 pc), 938882, for initial operational checks (standard accessory)
Battery life: Approx. 2.4 years under normal use (for series 342)
Length standard: Electromagnetic rotary sensor (for series 342)
Standard accessories: Reference bar, 1 pc (except for measuring range 0-25mm (0-1″) models)Spanner (301336), 1 pc
Optional accessories
Connecting cables for series 342
1m: 05CZA662
2m: 05CZA663
USB Input Tool Direct
USB-ITN-B (2m): 06ADV380B
SPC cables for U-WAVE w/ data switch (160mm):
02AZD790B
For foot switch: 02AZE140B
(Refer to page B-68 for details.)
