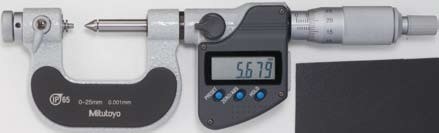

- Measures the height of crimp contacts.
- Equipped with Ratchet Stop for constant measuring force.
- IP65 water/dust protection (digital model).
- Model 342-451 is the Quickmike type, which provides a speedy spindle feed of 10mm per thimble rotation, which enables widely differently sized features to be measured quickly.
SPECIFICATIONS
Metric
| Order No. | Range | Resolution | Accuracy* |
|---|---|---|---|
| Digimatic (LCD) | |||
| 342-271-30 | 0 – 20mm | 0.001mm | ±3µm |
| Quickmike (LCD) | |||
| 342-451 | 0 – 15mm | 0.001mm | ±3µm |
* Excluding quantizing error
Inch/Metric
| Order No. | Range | Resolution | Accuracy* |
|---|---|---|---|
| Digimatic (LCD) | |||
| 342-371-30 | 0 – .8″ | .00005″/ 0.001mm | ±.00015″ |
* Excluding quantizing error
Metric
| Order No. | Range | Graduation | Accuracy |
|---|---|---|---|
| Mechanical counter model | |||
| 142-402 |
0 – 25mm |
0.01mm |
±3µm |
| 142-403 | 0.001mm | ||
Metric
| Order No. | Range | Graduation | Accuracy |
|---|---|---|---|
| Analog | |||
| 112-401 | 0 – 25mm | 0.01mm | ±3µm |
DIMENSIONS
IP Codes (series 342-271-30, 342-371-30)
Level 6: Dust-proof.
No ingress of dust allowed.
Level 5: Protected against water jets.
Water projected in jets against the enclosure
from any direction shall have no harmful effects.
Battery for series 342
SR44 (1 pc), 938882, for initial operational checks
(standard accessory)
Battery life: Approx. 2.4 years under normal use
(for series 342-271-30/342-371-30)
Approx. 3 years under normal use
(for series 342-451)
Length standard: Electromagnetic rotary sensor
(for series 342-271-30/342-371-30)
Electrostatic capacity absolute sensor
(for series 342-451)
Standard accessories:
Spanner (301336), 1 pc (except for series 342-451)
Optional accessories
Connecting cables (digital model)
1m: 05CZA662
2m: 05CZA663
USB Input Tool Direct
USB-ITN-B (2m): 06ADV380B
Connecting cables for U-WAVE-T (digital model)
02AZD790B (160mm)
For foot switch: 02AZE140B
Connecting cables (Quickmike type)
1m: 937387
2m: 965013
USB Input Tool Direct
USB-ITN-E (2m): 06ADV380E
Connecting cables for U-WAVE-T (Quickmike type)
02AZD790E 160mm
For foot switch: 02AZE140E
Refer to page B-68 for details.
