3282_1

  • Measure root tangent length of gear
  • Graduation 0.01mm
  • Ratchet stop
  • Supplied with setting standards
Code Range Accuracy Parallelism L b c D S d

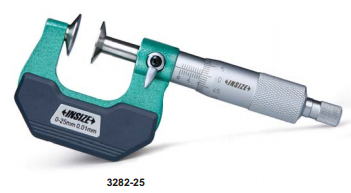

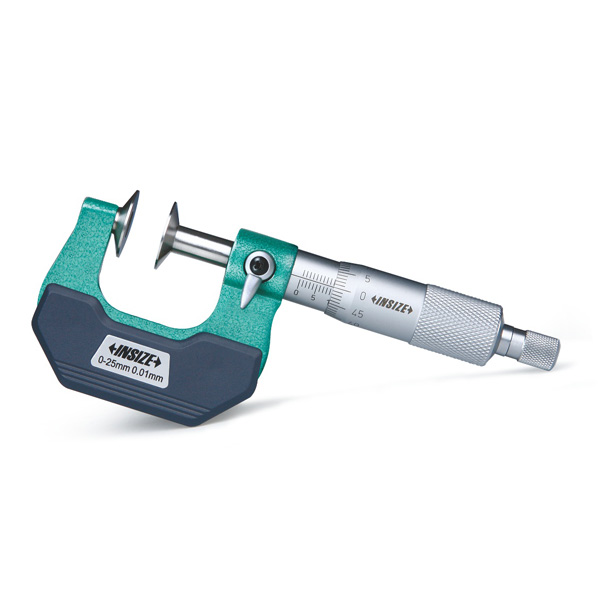

3282-25 0-25mm 4μm 5μm 34 24 3.3 Ø20 0.7 Ø8

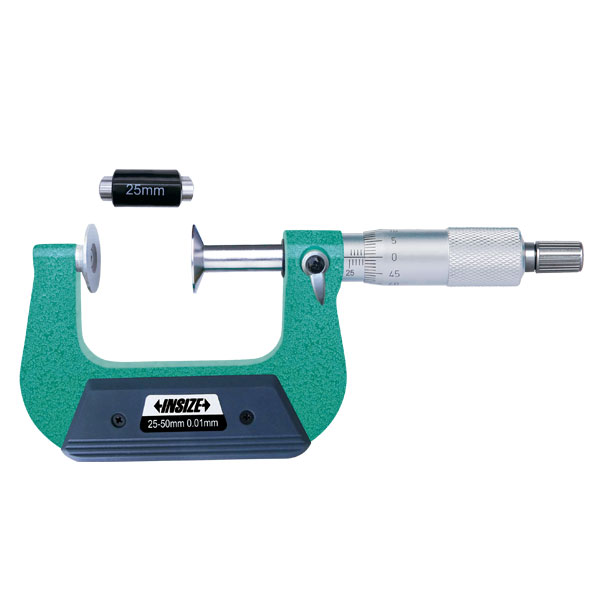

3282-50 25-50mm 4μm 5μm 59 32 3.3 Ø20 0.7 Ø8

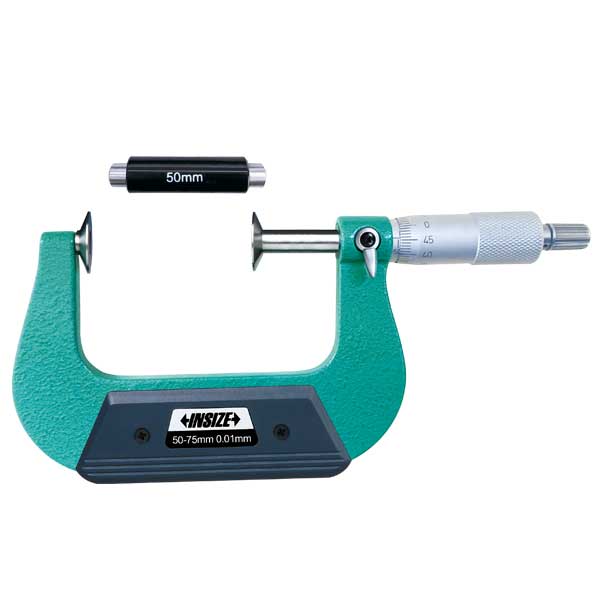

3282-75 50-75mm 5μm 5μm 85 45 3.3 Ø20 0.7 Ø8

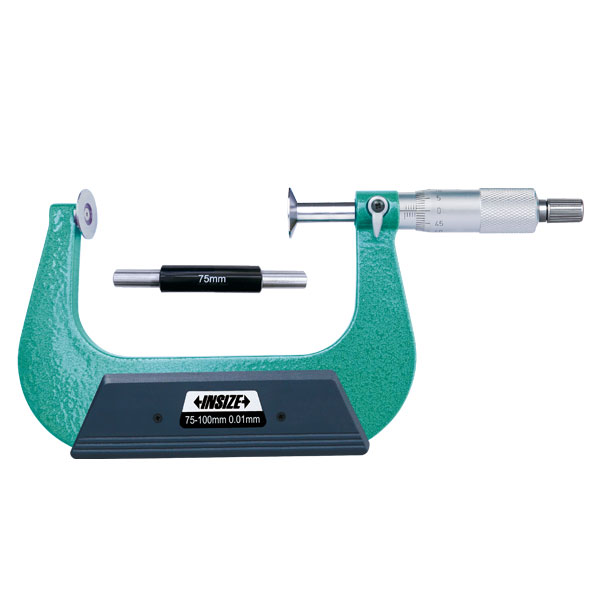

3282-100 75-100mm 5μm 5μm 110 57 3.3 Ø20 0.7 Ø8

3282_2
