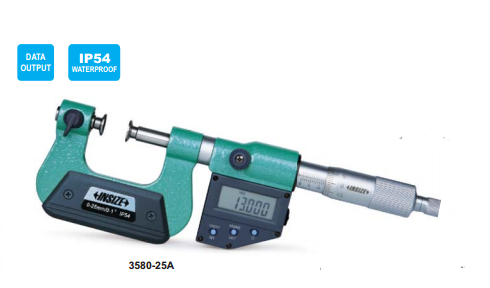

INSIZE DIGITAL UNIVERSAL MICROMETER (CODE – 3580)

Code:

▪Resolution 0.001mm/0.00005"
▪Non-rotating spindle
▪Button function: on/off, set, mm/inch, data transmit
▪Data output
▪Automatic power off
▪Ratchet stop
▪Supplied with 7 pairs of anvil/spindle tip
▪Setting standards are included (except 0-25mm/0-1")
▪Optional accessary: 55° anvil/spindle tip code 3280-SP1 and 3280-SP2, data output cable

Click to Expand

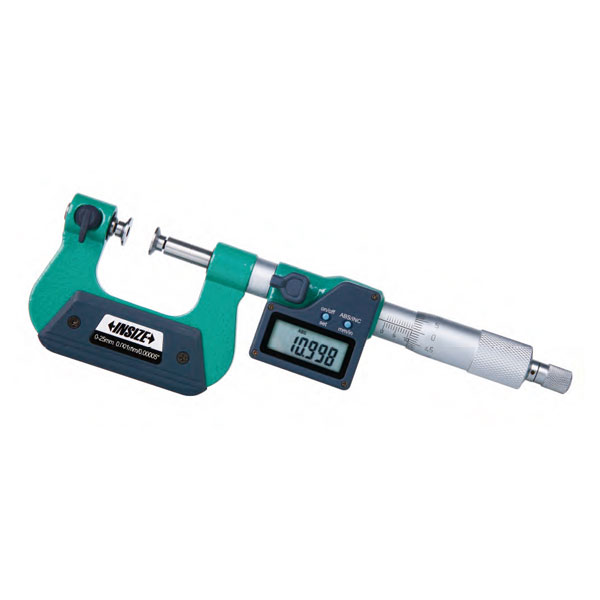

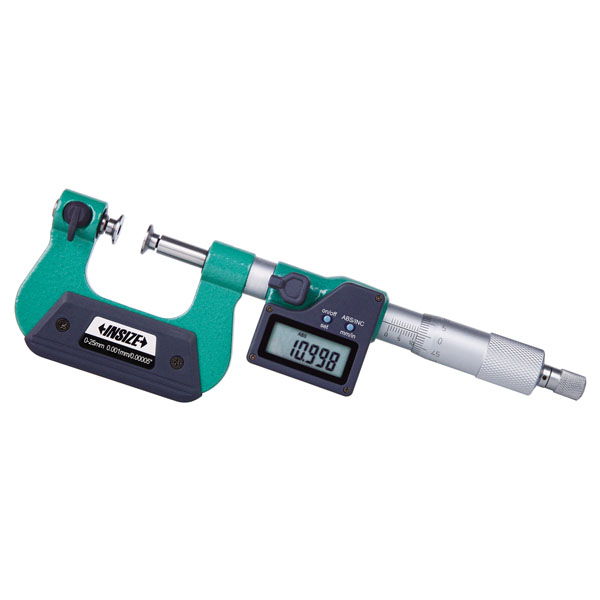

INSIZE DIGITAL UNIVERSAL MICROMETER (CODE – 3580)

Product Overview

The INSIZE Digital Universal Micrometer (Code 3580) is a precision measuring instrument featuring a non-rotating spindle and a digital display. Designed for accurate dimensional verification, each unit is supplied with 7 pairs of interchangeable anvil and spindle tips to accommodate various measurement requirements.

Key Features & Capabilities

Resolution: 0.001mm / 0.00005"
Spindle Type: Non-rotating spindle
Button Functions: On/off, set, mm/inch, data transmit
Data Output: Built-in data output functionality
Power Management: Automatic power off; powered by CR2032 battery with built-in wireless rechargeable lithium battery (with data interface models)
Measurement Control: Ratchet stop for consistent measuring force
Anvil/Spindle Tips: Supplied with 7 pairs of tips (Flat, Spherical, Spline, Disk, Blade, Knife-edge, and Point)
Standards: Setting standards included (except for 0-25mm/0-1" range models)

Technical Specifications

Code	Range	Accuracy	L (mm)	b (mm)
3580-25A	0-25mm / 0-1"	±4µm	42	26
3580-50A	25-50mm / 1-2"	±4µm	67	38
3580-75A	50-75mm / 2-3"	±5µm	92	50
3580-100A	75-100mm / 3-4"	±5µm	118	62
3580-125A	100-125mm / 4-5"	±6µm	143	70
3580-150A	125-150mm / 5-6"	±6µm	168	82
3580-175A	150-175mm / 6-7"	±7µm	192	95
3580-200A	175-200mm / 7-8"	±7µm	217	107

Included Anvil/Spindle Tips

Flat
Spherical (SR5, Ø6.5)
Spline (Ø2, 3)
Disk (Ø12)
Blade (0.7, 3)
Knife-edge (0.35, 60°)
Point (Ø0.3, 60°)

Optional Accessories

55° anvil/spindle tip (Code 3280-SP1 and Code 3280-SP2)
Data output cable (for data interface models; code 7315-31 receiver needed for code 7315-2/3/6/7/8/9 wireless models)
