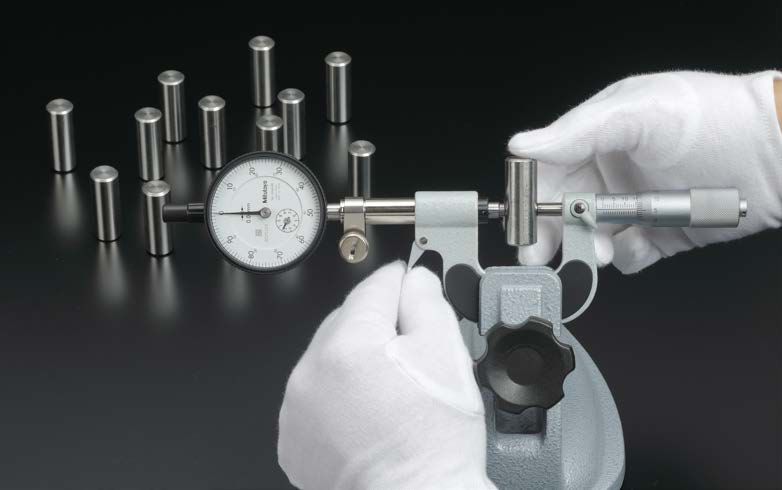

- Designed to mount a dial indicator for direct GO/±NG judgment on mass-produced parts.
- Anvil retracting trigger for quick measurement.
- Various kinds of indicators*1 are selectable depending on the measurement type (accuracy required, measuring range, etc.).
- Measuring faces: Carbide
- Anvil stroke: 3mm
SPECIFICATIONS
Metric
| Order No. | Range | Accuracy |
|---|---|---|
| 107-201 | 0 – 25mm |
±2µm |
| 107-202 | 25 – 50mm | |
| 107-203 | 50 – 75mm | |
| 107-204 | 75 – 100mm |
±3µm |
| 107-205 | 100 – 125mm | |
| 107-206 | 125 – 150mm | |
| 107-207 | 150 – 175mm |
±4µm |
| 107-208 | 175 – 200mm |

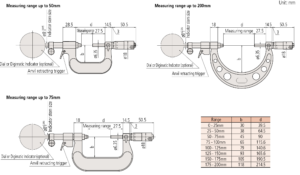

DIMENSIONS AND MASS
Technical Data
Flatness: 0.6µm/.000024″ Parallelism: (2 + R/100)µm, R = max. measuring range (mm)
fraction rounded down Standard accessories: Reference bar, 1 pc (except for measuring range 0-25mm models) Spanner (301336), 1 pc
Typical indicator choice
Dial indicator (0.01mm) / 2046S8
Dial indicator (0.001mm) / 2109S8-10
ABS Digimatic Indicator (0.01mm) / 543-4008
ABS Digimatic Indicator (0.001mm) / 543-3908
*1 Indicators with stems cannot be installed on this micrometer
