INSIZE COATING THICKNESS GAGE (CODE 9501-1200)

Magnetic induction probe (FE) measures the thickness of non-magnetic coating and non-metallic coating on magnetic metal substrate. Substrate: iron, steel, magnetic stainless steel (not for non-magnetic stainless steel) Coating: zinc, copper, chrome, tin, plastic, powder, paint (not for nickel) Eddy current probe (NFE) measures the thickness of non-conductive coating on non-magnetic metal substrate. Substrate: copper, aluminum, zinc, non-magnetic stainless steel Coating: plastic, powder, paint, anodizing (not for chrome and zinc plating Tolerance measurement Data statistic, including average, variance, maximum and minimum values Data can be sent to Excel by connecting to computers via bluetooth or cable of receiver Support bluetooth printer Automatic power off

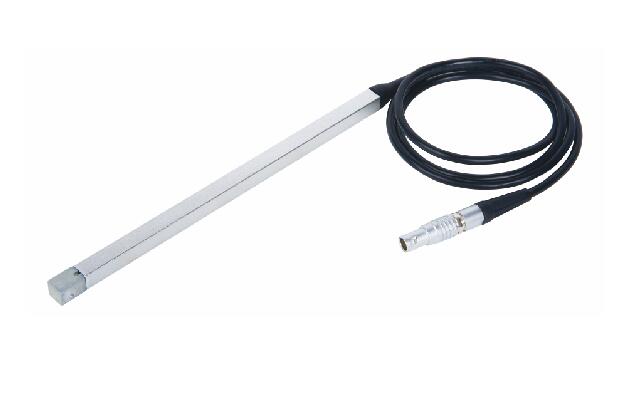

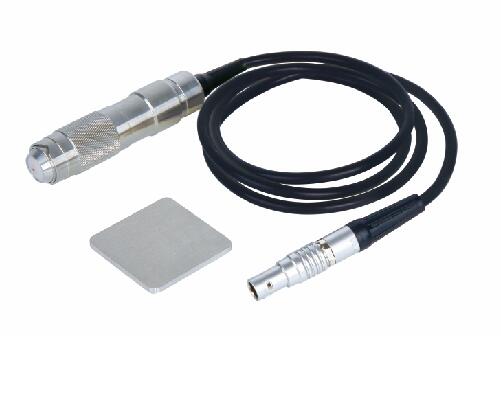

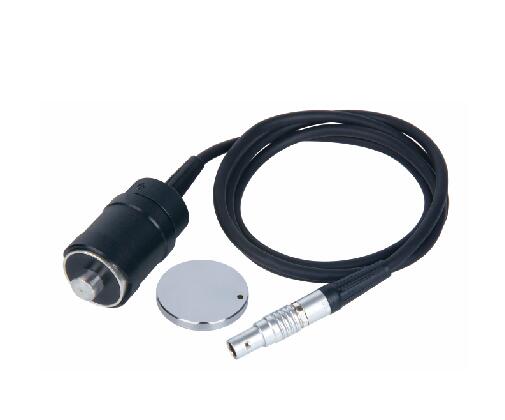

Probe type FE (included) magnetic induction probe NFE (optional) eddy current probe FE90 (optional)       magnetic induction probe for bores and grooves FE10 (optional)       magnetic induction probe for large range
Measuring range 0~1250μm 0~1250μm 0~1250μm 500~10000μm
Accuracy ±(3%L+1)μm    (ranges < 1250 μm)
±(3%L+10)μm  (ranges < 1250 μm)                                          L is measuring thickness in μm
Resolution 0.1 μm (range<100μm)
1 μm (range<100μm)
Measuring mode continuous and single
Minimum substrate thickness 0.5mm 0.3mm 0.5mm 2mm
Minimum measuring area Ø7mm Ø5mm Ø7mm Ø40mm
Minimum curvature radius of convex workpiece 1.5mm 3mm 10mm
Memory 600
Output USB
Power supply 2×1.5V AA batteries
Dimension 135x77x32mm
Weight 172g

  • Magnetic induction probe (FE) measures the thickness of non-magnetic coating and non-metallic coating on magnetic metal substrate.
    Substrate: iron, steel, magnetic stainless steel (not for non-magnetic stainless steel)
    Coating: zinc, copper, chrome, tin, plastic, powder, paint (not for nickel)
  • Eddy current probe (NFE) measures the thickness of non-conductive coating on non-magnetic metal substrate.
    Substrate: copper, aluminum, zinc, non-magnetic stainless steel
    Coating: plastic, powder, paint, anodizing (not for chrome and zinc plating
  • Tolerance measurement
  • Data statistic, including average, variance, maximum and minimum values

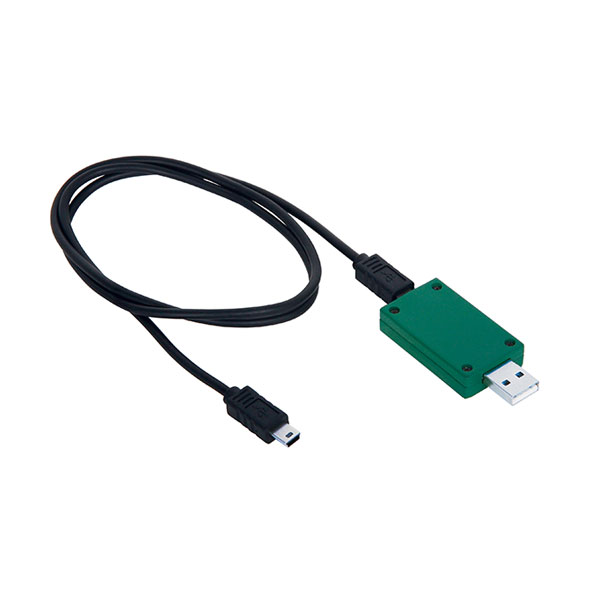

  • Data can be sent to Excel by connecting to computers via bluetooth or cable of receiver
  • Support bluetooth printer
  • Automatic power off
