BAKER AIR GAUGE UNIT – PFL

Name: BAKER AIR GAUGE UNIT – PFL
Brand: Baker Gauges
SKU: 0.0005 mm

Code:

Air Gauge Unit – PFL FEATURES: Every gauge carries a calibration certificate giving actual values Module 1A, Module 2A giving the most economical solution to your inspection needs on shop floor High pressure system: high speed of response and self cleaning of gauging area ensures accurate reading of size, taper and ovality at a time

DOWNLOAD CATALOG

f in

Click to Expand

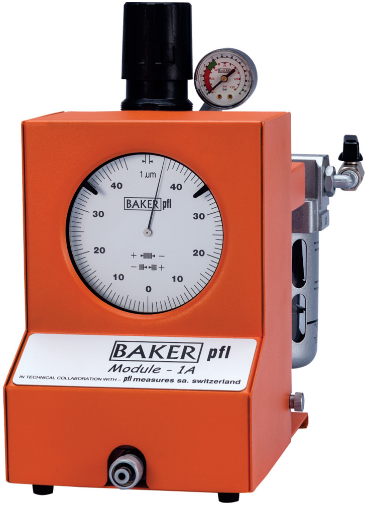

BAKER AIR GAUGE UNIT – PFL

Product Overview

The Baker Air Gauge Unit – PFL is a high-precision, high-pressure dimensional measurement system designed for efficient and accurate shop floor inspections. Utilizing a non-contact gauging system, the PFL unit offers an economical solution for measuring size, taper, and ovality simultaneously. The unit is available in two configurations—Module 1A and Module 2A—to accommodate different diameter ranges with minimal frictional wear and maximum service life.

Key Features & Capabilities

High-Pressure System: Delivers a rapid response speed and features a self-cleaning gauging area to ensure highly accurate, simultaneous readings of size, taper, and ovality.
Non-Contact Gauging: Eliminates direct contact with the workpiece, ensuring a long operating life due to minimal frictional wear.
Dual Setting Masters: Utilizes two setting masters to guarantee correct magnification of readings at all times.
Integrated Pressure Regulation: Features a built-in system pressure check gauge that provides a constant check on the system pressure, regulated at 3 bars (45 psi) by an integrated high-precision regulator.
Module Selection by Diameter:
Module-1A: Designed for measuring diameters of 6 mm and above.
Module-2A: Designed for measuring diameters below 6 mm.
Quality Assurance: Every gauge is supplied with an individual calibration certificate detailing actual verified values.

Technical Specifications

Parameter	Specification
Minimum Line Pressure Required	4.5 bars (67 psi)
Air Consumption	46 LPM
Regulated System Pressure	3 bars (45 psi)

Model Configurations & Metrological Data

Reading	Range	Graduation	Module
0.0005 mm	±0.020 mm	20-0-20	Mod 1 A
0.001 mm	±0.040 mm	40-0-40	Mod 1 A
0.002 mm	±0.080 mm	80-0-80	Mod 1 A
0.001 mm	±0.020 mm	20-0-20	Mod 2 A
0.00005″	±0.002″	2-0-2	Mod 1 A
0.0001″	±0.004″	4-0-4	Mod 1 A
0.000025″	±0.001″	1-0-1	Mod 1 A
