Designed for quick GO/NG judgment of diameters of cylinders and shafts in machining processes. Wide (13.5 x 12mm/ 1.53 x 47”), flat carbide anvils. Anvil retracting stroke: 2mm/.080” Anvil positioning range: 25mm/ 1” Adjustment nut: adjusts the measuring range. Clamp: adjustment nut Flatness of measuring face: 1μm Stability of indication: 2μm or less (stability of […]
Dial caliper gages are inside diameter measurement tools, which have a broader range of applications including the measurement of hole diameter and internal measurement of special shapes (grooves). Internal measurement SPECIFICATIONS Metric Order No. Range Graduation Range of opening*1 Dial face Accuracy Measuring force 209-125 6 – 18mm 0.01mm 5.8 – 18.2mm 0-100-100 ±40µm 2.0N […]
Dial thickness gages can quickly measure the thickness of thin products such as paper and felt. Contact point and anvil are both made of ceramic: rust-free (547-401 is excluded.) Integrated molding of the bezel and crystal ensures protection against water and oil penetration via the front face. Standard Type High Accuracy Type Standard Type Lightweight […]
Lightweight and palm-sized. Highly suitable for quick dimensional inspection of small, thin and delicate objects. Functions: origin setting and zero-setting. Application examples Measurement of small objects: pearls, jewels, shims for engine tappets and screws. Measurement of thin objects: printing paper, polyethylene bags, sheet materials, foods including noodles, lenses for glasses, media substrates, foils, thin plates and medical products including filter […]
MARAMETER 49P-2M GAGE FOR EXTERNAL MEASUREMENT Generous clearance on jaws reaches over non-measured part protrusions for easy access to areas where thickness must meet critical dimensional specs Retraction lever is conveniently located for one hand operation 0.02 mm or 0.1 mm / .01“, .001“, or 1/64“ grads. available Continuous reading dials with revolution counters normally […]
High contrast analog and digital LCD Tolerance displayed with 2 LEDs Technical data Order no. Product type Measuring range mm Graduation value mm Repeatability mm Error limit (mm) Measuring force (N) Measuring depth mm Measuring contact ball diameter mm Length of moving measuring contact Length of fixed measuring contact […]
Contact points made of carbide Absolute measuring instrument Easy-to-read tolerance markers Technical data Order no. Product type Measuring range mm Graduation value mm Repeatability mm Error limit (mm) Measuring force (N) Measuring depth mm Measuring contact ball diameter mm Length of moving measuring contact Groove depth Groove width Length of fixed measuring contact 4495580 838 […]
High contrast analog and digital LCD Tolerance displayed with 2 LEDs Technical data Order no. Product type Measuring range mm Graduation value mm Repeatability mm Error limit (mm) Measuring force (N) Measuring depth mm Measuring contact ball diameter mm Length of moving measuring contact Groove depth Groove width […]
MARAMETER 57B-13M PORTABLE THICKNESS GAGES Using the basic design of the Model 57B-13 (Model 57B-13M — Metric) gage, the lower contact is PT-103, 1.10 mm / .043” diameter rod, mounted horizontally Upper contact is a flat chisel contact , in line with the rod By slipping tubular parts onto the lower contact, the gage can […]
MARAMETER 57B-15M PORTABLE THICKNESS GAGES Solid casting with ribbed frame provides strength and rigidity for accurate measurements 0.003 mm / .0001“ parallelism with tables up to 19 mm / .75“ diameter 283 g / 10 oz. dead weight load for constant gaging pressure 10 mm / .407“ diameter flat upper 54.0 mm / 2.125“ lower […]
MARAMETER PORTABLE THICKNESS GAGES Solid casting with ribbed frame provides strength and rigidity for accurate measurements Furnished with a lift lever so work can be easily placed between the contacts Large 54 mm/ 2.125“ diameter lower anvil provides convenient stage for small parts or flat materials 4.75 mm/ .187“ diameter radiused upper contact normally provided […]
MARAMETER 26P-7M PORTABLE THICKNESS GAGES Push down movement Molded body fits shape of hand Built-in indicator Gage is normally open for easy part entry Push down button to close the contacts Rugged and compact for portable use 6.3 mm / .25“ diameter, flat steel contacts Technical data Order no. Product type Measuring range mm Throat […]
Indicator built into gage frame for maximum ruggedness Lift lever for one hand operation Continuous reading dials with revolution counter for absolute measurement of thin materials, plastic films and small parts 6.3 mm / .25“ diameter, flat steel contacts Technical data Order no. Product type Measuring range inches Graduation value inch Probe_path_inch Size of measuring […]
Indicator built into gage frame for maximum ruggedness Lift lever for one hand operation Continuous reading dials with revolution counter for absolute measurement of thin materials, plastic films and small parts 6.3 mm / .25“ diameter, flat steel contacts Technical data Order no. Product type Measuring range inches Measuring range mm Throat depth mm Probe_path_inch […]
Rugged, sturdy frame made from hard aluminum Built-in digital or dial indicator With a lifting lever for movable upper measuring spindle Technical data Order no. Product type Measuring range inches Measuring range mm Throat depth mm Resolution (mm) Resolution (in) Resolution mm/inch Graduation value mm Measuring surface diameter Measuring face Measurement surface radius 4495140 838 […]
Rugged, sturdy frame made from hard aluminum Built-in digital or dial indicator With a lifting lever for movable upper measuring spindle Convenient heat insulated handle, open at one end Versions with a throat depth of 200 mm have a removable stand Technical data Order no. Product type Measuring range inches Measuring range mm Throat depth […]
Rugged, sturdy frame made from hard aluminum Built-in digital or dial indicator With a lifting lever for movable upper measuring spindle Convenient heat insulated handle, open at one end Versions with a throat depth of 200 mm have a removable stand Technical data Order no. Product type Measuring range inches Measuring range mm Throat depth […]
Rugged, forged steel frame with heat insulators Measuring spindle is mounted in long guideway with lever controlled retraction Anvil spindle adjustable with thumbscrew via worm and rack, for mounting interchangeable support yokes Measuring spindle and anvil are made of hardened stainless steel with mounting bore for insertion of interchangeable anvils Anvil spindle can easily be […]
Rugged, forged steel frame with heat insulators Measuring spindle is mounted in long guideway with lever controlled retraction Measuring spindle and anvil are made of hardened stainless steel with mounting bore for insertion of interchangeable anvils Adjustable center stop for automatic alignment Anvil spindle can easily be fine adjusted Constant measuring force as a result […]
Rugged steel frame can be inclined up to 45° from the sturdy base Measuring spindle and anvil are made of hardened stainless steel with mounting bore for insertion of interchangeable anvils Height adjustable stop Anvil spindle can easily be fine adjusted Constant measuring force as a result of built-in spring, eliminating user influence Technical data […]
MARAMETER 1000P-6 INDICATING SNAP GAGE Flat lower anvil (reference) adjustable over a broad range Radiused upper anvil (sensitive) spring loaded to counter balance the weight of the gage Indicator can be rotated to read from front or rear of the gage Anvils are tungsten carbide for long life Technical data Order no. Product type Application […]
Patented “Channel Lock” design assures precise parallel anvil surfaces throughout the full 25 mm / 1“ range of adjustment All Series 300P snap gages are fully adjustable with positive position locking at any point within the rang 0.50 mm / .020“ movement of sensitive contact Snap gages available over a wide range of sizes, styles, […]
MARAMETER 300P-7 INDICATING SNAP GAGE Patented “Channel Lock” design assures precise parallel anvil surfaces throughout the full 25 mm / 1“ range of adjustment All Series 300P snap gages are fully adjustable with positive position locking at any point within the range 0,50 mm / .020“ movement of sensitive contact Snap gages available over a […]
Extremely accurate due to the straight transfer of spindle movement to the inductive measuring system according to the Abbe principle Universally applicable and extremely versatile – Each instrument spans a broad measuring range – Any dimension and fit can be very quickly and easily adjusted Constant measuring force as a result of built-in spring, eliminating […]
Rugged, forged steel frame with heat insulators Both spindles are made of hardened stainless steel and mounted in long guideways Carbide tipped measuring faces slightly chamfered at the front to facilitate positioning Projects over width of frame for measurement of narrow registers or when measuring directly at shoulders Adjustable centering stop for surface centering Straight […]
Rugged, forged steel frame with heat insulators Measuring spindle is mounted in long guideway with lever controlled retraction Measuring spindle and anvil spindle made of hardened stainless steel; with extending carbide-tipped measuring jaws Anvil spindle can easily be fine adjusted Constant measuring force as a result of built-in spring, eliminating user influence Maximum wear resistance […]
Rugged, forged steel frame with heat insulators Measuring spindle is mounted in long guideway with lever controlled retraction Measuring spindle and anvil spindle have an M 2.5 connection thread, thus enabling the use of interchangeable anvils that are also used in dial indicators and dial comparators Anvil spindle can easily be fine adjusted Constant measuring […]
Rugged, forged steel frame with heat insulators Measuring spindle is mounted in long guideway with lever controlled retraction Measuring and anvil spindle have precision tapered bores for mounting interchangeable anvils (with accessory 40 He) Anvil spindle can easily be fine adjusted Constant measuring force as a result of built-in spring, eliminating user influence Maximum wear […]
Longer service life due to the ceramic measuring faces Rugged, forged steel frame with heat insulators Measuring spindle is mounted in long guideway with lever controlled retraction Measuring spindle and anvil spindle are both made of hardened stainless steel, ceramic measuring faces Adjustable centering stop for surface centering Anvil spindle can easily be fine adjusted […]
Rugged, forged steel frame with heat insulators Measuring spindle is mounted in long guideway with lever controlled retraction Measuring spindle and anvil are made of hardened stainless steel with carbide tipped measuring faces Adjustable centering stop for surface centering Anvil spindle can easily be fine adjusted Constant measuring force as a result of built-in spring, […]
FEATURES: Designed for quick GO/NOT-GO gauging of diameters of cylindrical parts either inprocess or post process Measuring spindle and anvil spindle are manufactured out of graded steel Spindles are hardened and ground including screw threads Carbide ground and lapped tip of measuring faces ensures maximum wear resistance For quick entry, chamfer provided on front edges […]
Throat Depth: 30 – 200 mm FEATURES: Every gauge carries a calibration certificate giving actual values For quick measurement of thickness of sheets, paper, leather etc In series K130, K138/L and K142, K145, K150 measurement pressure is independent of the user, resulting in accurate readings of thickness K138 ‘Push Down Type’ thickness gauge is particularly […]

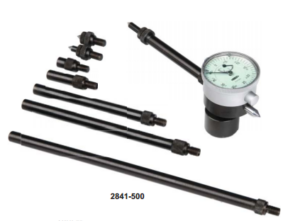

To test crankshaft deflection The balance block is mounted on the back of dial indicator to keep the dial indicator facing up Code range Dial indicator range Graduation Extension rods Accuracy 2841-300 60-300mm 3mm 0.01mm 16mm, 32mm, 64mm, 128mm ±0.016mm 2841-500 60-500mm ±0.03mm ±0.03mm 16mm, 32mm, 64mm, 96mm, 128mm, 192mm ±0.016mm Check the PDF
Measure step height and gap width Resolution: 0.01mm/0.0005″ Buttons: on/off, zero, mm/inch Automatic power off, move the digital unit to turn on power Battery CR2032 Data output Made of stainless steel Supplied with zero setting block Optional accessory: data output system Code range Accuracy 2168-12 0-12.7mm/0-0.5″ ±0.03mm Check the PDF
DIGITAL SNAP GAGE CODE – 2163 Resolution: 0.01mm/0.0005″ Accuracy: ±0.04mm For thickness and tube wall thickness measurement Code Thickness range Tube all thickness range 2163-25 0-25mm/0-1″ 0-2mm/0.08″ Check the PDF DIGITAL SNAP GAGE CODE – 2166 Code Range Resolution Accuracy 2166-12 0-12mm/0-0.5″ 0.01mm/0.0005″ ±0.03mm Check the PDF DIGITAL SNAP GAGE […]
Go/No-Go judgement for mass production Dial indicator: range ±0.04mm, graduation 0.001mm, accuracy 0.001mm IP54 dust/waterproof Measuring force: 5-10N Carbide measuring faces Supplied with setting standards (except 0-25mm) Code Range L D 3334-25 0-25mm 28.5 25 3334-50 25-50mm 53.5 35 3334-75 50-75mm 78.5 47.5 3334-100 75-100mm 103.5 60 Check the PDF
For quick Go/No-Go judgment of diameter of cylinders and shafts Anvil retracting stroke: 3mm Measuring force: 6-9N Carbide measuring faces Optional accessory: dial indicators (graduation 0.01mm), digital indicators (resolution 0.01mm/0.0005″) Code Range A B 2184-25W 0-25mm 34 18 2184-50W 0-50mm 62 32 2184-100W 50-100mm 112 62 2184-150W 100-150mm 162 85 2184-200W 150-200mm 212 110 […]
For quick Go/No-Go judgment of diameter of cylinders and shafts Anvil retracting stroke: 3mm Measuring force: 6-9N Carbide measuring faces Front edges of anvils are chamfered for easy workpiece insertion Optional accessory: dial indicators (graduation 0.01mm), digital indicators (resolution 0.01mm/0.0005″) Code Range A B 2185-25W 0-25mm 42 20 2185-50W 25-50mm 69 32.5 2185-75W 50-75mm […]

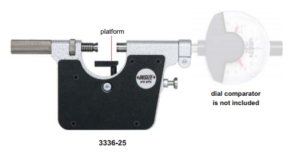

Quick Go/No-Go judgement for mass production Carbide measuring faces Adjustable platform height Optional accessory: dial comparator (code 2881-01) Code Range Diameter of measuring faces d) 3336-25 0-25mm 8 3336-50 25-50mm 8 3336-100 50-100mm 15 Check the PDF
Quick Go/No-Go measurement for mass production Anvil retracting stroke: 2.5mm Dial indicator: measuring range ±0.07mm, graduation 1µm, accuracy 1µm Constant measuring force over the whole range: 8.5N Carbide measuring faces IP54 dust/waterproof Zero position of dial indicator is adjustable and can be locked (supplied with locking wrench) Adjustable platform height Code Range L a […]

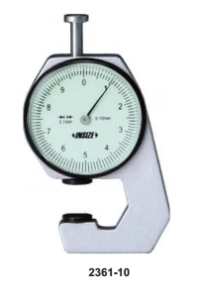

THICKNESS GAGE CODE – 2361 Code Range Graduation Accuracy 2361-10 0-10mm 0.1mm ±0.05mm Check the PDF THICKNESS GAGE CODE – 2363 Stainless steel spindle tip and anvil Code Range Graduation Accuracy 2363-10 0-10mm 0.01mm ±0.02mm Check the PDF THICKNESS GAGE CODE – 2862 Code Range Graduation Accuracy L L1 2862-101 […]
Measure tube wall thickness Code Range Graduation Accuracy 2367-10A 0-10mm 0.01mm ±0.02mm Check the PDF

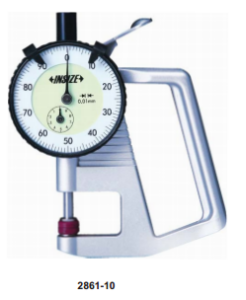

THICKNESS GAGE CODE – 2861 Ceramic spindle tip and anvil Code Range Graduation Accuracy 2861-10 0-10mm 0.01mm ±0.02mm Check the PDF THICKNESS GAGE CODE – 2364 Code Range Graduation Accuracy Type 2364-10 0-10mm 0.01mm ±0.02mm A 2364-10B 0-10mm 0.01mm ±0.02mm B Check the PDF THICKNESS GAGE CODE – 2365 Code Range […]
DIGITAL THICKNESS GAGE CODE – 2871 Ceramic spindle tip and anvil Buttons: on/off, zero, mm/inch Battery CR2032, automatic power off Data output Optional accessory: data output system Code Range Resolution Accuracy 2871-10 0-10mm/0-0.4″ 0.01mm/0.0005″ ±0.02mm 2871-101 0-10mm/0-0.4″ 0.001mm/0.00005″ ±0.005mm Check the PDF DIGITAL THICKNESS GAGE CODE – 2867 Ceramic spindle tip and anvil […]
Reading in digit and analog Display can be rotated by 320º Button function: tolerance Go and No-Go display, data preset, measuring direction change, max./min./range measurement, inch/metric conversion, absolute/incremental measurement CR2032 battery, automatic power off Data output Optional accessory: data output system Code Range Resolution Accuracy L(mm) 2132-20 0-20mm/0-0.8″ 0.01mm/0.0005″ ±0.04mm 60 2132-40 20-40mm/0.8-1.6″ 0.01mm/0.0005″ […]

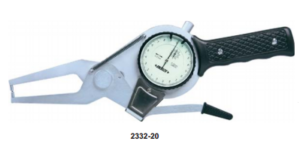

Code Range Graduation Accuracy L(mm) 2332-20 0-20mm 0.01mm ±0.04mm 60 2332-40 20-40mm 0.01mm ±0.04mm 60 2332-60 40-60mm 0.01mm ±0.04mm 55 2332-80 60-80mm 0.01mm ±0.04mm 55 2332-100 80-100mm 0.01mm ±0.04mm 55 Check the PDF
Reading in digit and analog Display can be rotated by 320º Button function: tolerance Go and No-Go display, data preset, measuring direction change, max./min./range measurement, inch/metric conversion, absolute/incremental measurement CR2032 battery, automatic power off Data output Optional accessory: data output system Code Range Resolution Accuracy L A D 2151-35 15-35mm/0.6-1.4″ 0.01mm/0.0005″ ±0.04mm 50 3 […]
Code Range Graduation Accuracy L A D 2321-35 15-35mm 0.01mm ±0.04mm 50 3 Ø3 2321-AL35 15-35mm 0.01mm ±0.04mm 200 3 Ø3 2321-55 35-55mm 0.01mm ±0.04mm 80 6 Ø3 2321-AL55 35-55mm 0.01mm ±0.04mm 250 8 Ø3 2321-75 55-75mm 0.01mm ±0.04mm 90 8 Ø3 2321-AL75 55-75mm 0.01mm ±0.04mm 250 8 Ø3 2151-95 75-95mm 0.01mm ±0.04mm […]
