TUBE THICKNESS GAUGE CODE – 2367

Name: TUBE THICKNESS GAUGE CODE – 2367
Brand: INSIZE
SKU: 2367

Code:

Measure tube wall thickness Code Range Graduation Accuracy 2367-10A 0-10mm 0.01mm ±0.02mm Check the PDF

DOWNLOAD CATALOG

f in

Click to Expand

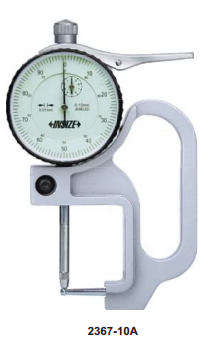

TUBE THICKNESS GAUGE CODE – 2367-10A

Product Overview

The INSIZE 2367-10A is a precision tube thickness gauge designed specifically for measuring the wall thickness of tubes. This mechanical gauge features a dial indicator for clear, accurate readings and a specialized frame geometry to facilitate internal measurements.

Key Features & Capabilities

Application: Specifically engineered for measuring tube wall thickness.
Design: Ergonomic frame with a lever-actuated spindle for ease of use.
Precision: High-resolution graduation of 0.01mm for accurate measurement.

Technical Specifications

Parameter	Specification
Model Code	2367-10A
Measuring Range	0-10mm
Graduation	0.01mm
Accuracy	±0.02mm
Anvil/Spindle Tip Diameter	SØ3.5 mm
Dial Diameter	Ø58 mm
Total Height	145 mm
Total Width	96 mm
Throat Depth	44 mm
Anvil Clearance	21 mm
