DIAL SNAP GAGE CODE – 2184

Name: DIAL SNAP GAGE CODE – 2184
Brand: INSIZE
SKU: 2184

Code:

For quick Go/No-Go judgment of diameter of cylinders and shafts Anvil retracting stroke: 3mm Measuring force: 6-9N Carbide measuring faces Optional accessory: dial indicators (graduation 0.01mm), digital indicators (resolution 0.01mm/0.0005″) Code Range A B 2184-25W 0-25mm 34 18 2184-50W 0-50mm 62 32 2184-100W 50-100mm 112 62 2184-150W 100-150mm 162 85 2184-200W 150-200mm 212 110 Check

DOWNLOAD CATALOG

f in

Click to Expand

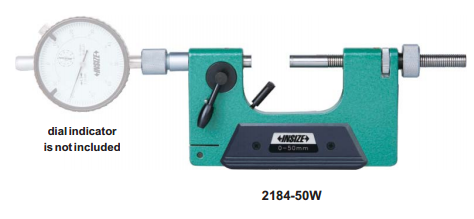

DIAL SNAP GAGE CODE – 2184

Product Overview

The INSIZE 2184 series Dial Snap Gage is a precision measuring instrument designed for the rapid Go/No-Go inspection of diameters on cylinders and shafts. This gage features a robust construction with carbide measuring faces to ensure durability and measurement accuracy.

Note: The dial indicator is not included with the gage. This model is not suitable for use with 0.001mm indicators.

Key Features & Capabilities

Application: Designed for quick Go/No-Go judgment of diameter for cylinders and shafts.
Measuring Faces: Equipped with carbide measuring faces for extended wear resistance.
Anvil Mechanism: Features an anvil retracting stroke of 3mm.
Measuring Force: Operates with a consistent measuring force of 6-9N.
Compatibility: Compatible with optional dial indicators (0.01mm graduation) and digital indicators (0.01mm/0.0005" resolution).

Technical Specifications

Code	Range	A (mm)	B (mm)
2184-25W	0-25mm	34	18
2184-50W	0-50mm	62	32
2184-100W	50-100mm	112	62
2184-150W	100-150mm	162	85
2184-200W	150-200mm	212	110

General Specifications

Anvil Retracting Stroke: 3mm
Measuring Force: 6-9N
Measuring Faces: Carbide
Optional Accessories: Dial indicators (graduation 0.01mm), digital indicators (resolution 0.01mm/0.0005")
