DIAL SNAP GAGE CODE – 3336

Name: DIAL SNAP GAGE CODE – 3336
Brand: INSIZE
SKU: 3336

Code:

Quick Go/No-Go judgement for mass production Carbide measuring faces Adjustable platform height Optional accessory: dial comparator (code 2881-01) Code Range Diameter of measuring faces d) 3336-25 0-25mm 8 3336-50 25-50mm 8 3336-100 50-100mm 15 Check the PDF

DOWNLOAD CATALOG

f in

Click to Expand

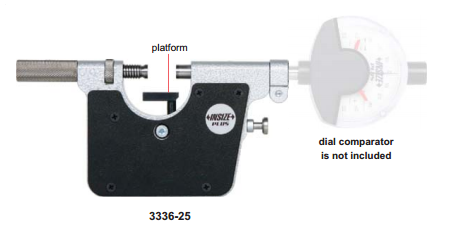

DIAL SNAP GAGE CODE – 3336

Product Overview

The INSIZE Dial Snap Gage (Series 3336) is a precision measuring instrument designed for rapid Go/No-Go judgement in mass production environments. This gage features an adjustable platform height to accommodate various workpiece requirements and is equipped with durable carbide measuring faces for extended service life.

Key Features & Capabilities

Efficient Inspection: Engineered for quick Go/No-Go assessment during high-volume manufacturing processes.
Durable Construction: Features carbide measuring faces for wear resistance and measurement stability.
Adjustable Design: Includes an adjustable platform height to suit specific application needs.
Compatibility: Designed for use with an optional dial comparator (Code: 2881-01).
