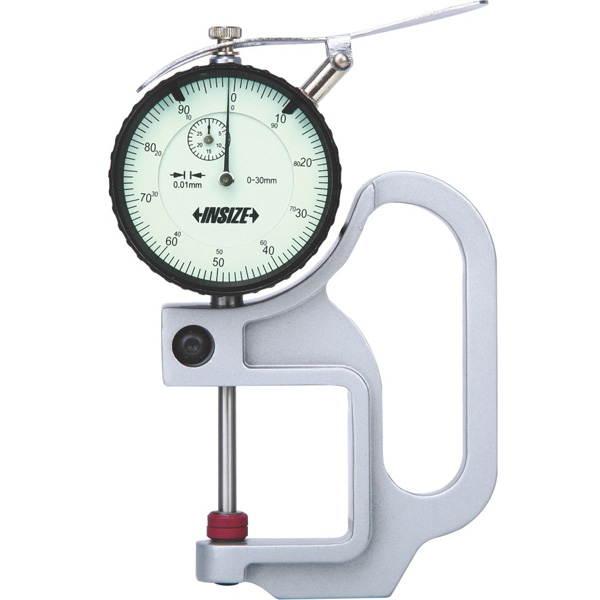

The INSIZE Dial Thickness Gage (Code – 2366) is a precision measuring instrument designed for accurate thickness determination across a 0-30mm range. Available in two distinct model configurations (Type A and Type B), this gage features a sturdy frame construction with standardized dimensions, a 56mm dial face, and a 0.01mm graduation for reliable measurement tasks.
- Dual Model Configurations: Available in Type A and Type B contact point designs to suit different measurement requirements.
- Precision Graduation: Features 0.01mm graduation for detailed dimensional readings.
- Contact Point Materials:
- Type A: Features ceramic contact points on both the upper and lower anvils (Ø10mm diameter).
- Type B: Features a steel spherical contact point ($S\varnothing3$) on the upper spindle and a steel contact point ($\varnothing10$) on the lower anvil.
- Ergonomic Design: Incorporates a comfortable handle grip and a lifting lever for quick spindle operation.
- Physical Dimensions:
- Dial Face Diameter: Ø56 mm
- Throat Depth: 30 mm
- Maximum Opening / Jaw Capacity: 38 mm
- Total Height: 140 mm
- Total Width: 95 mm
