DIGITAL SNAP GAGE CODE – 2163

  • Resolution: 0.01mm/0.0005″
  • Accuracy: ±0.04mm
  • For thickness and tube wall thickness measurement
2163 2163_01 2163_02



Code Thickness range Tube all thickness range
2163-25 0-25mm/0-1″ 0-2mm/0.08″

Check the PDF

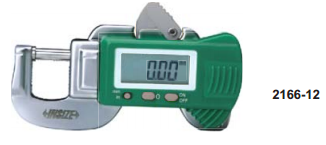

DIGITAL SNAP GAGE CODE – 2166

2166 2166_01



Code Range Resolution Accuracy
2166-12 0-12mm/0-0.5″ 0.01mm/0.0005″ ±0.03mm



Check the PDF



DIGITAL SNAP GAGE CODE – 2167

2167 2167_01



Code Range Resolution Accuracy
2167-25 0-25mm/0-1″ 0.01mm/0.0005″ ±0.03mm

Check the PDF



DIGITAL SNAP GAGE CODE – 1163

  • Buttons: on/off, zero, mm/inch
  • Automatic power off, move the digital unit to turn on power
  • Battery CR2032
  • Data output
  • Made of stainless steel
  • Optional accessory: data output system(code7306-20/20B, 7302-SPC1A/SPC1B,7305-SPC2)
1163 1163_01



Code range Resolution Accuracy
1163-50A 0-50mm/0-2″ 0.01mm/0.0005″ ±0.03mm

Check the PDF



DIGITAL 3-PURPOSE SNAP GAGE  CODE – 2164

  • Buttons: zero, mm/inch, on/off
  • Battery SR44 or LR44
  • Made of stainless steel
2164 2164_01 2164_02



Code range Resolution Accuracy
2164-25 0-25mm/0-1″ 0.01mm/0.0005″ ±0.03mm

Check the PDF
