The Baker Dial Snap Gauge is a precision measuring instrument engineered for rapid GO/NOT-GO gauging of cylindrical part diameters. It is suitable for both in-process and post-process inspection environments. This gauge is designed to accommodate any standard dial indicator with an ΓΈ8 h6 mm holding shank and is also compatible with electronic probes and digital dial gauges.

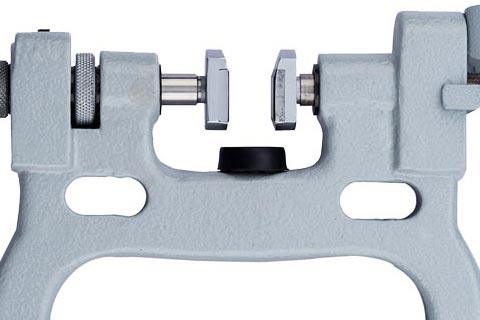

- Precision Construction: Measuring and anvil spindles are manufactured from graded steel, hardened and ground, including the screw threads.
- Wear Resistance: Measuring faces feature carbide ground and lapped tips to ensure maximum durability.
- Operational Efficiency: Front edges are chamfered to facilitate quick entry of parts.
- Consistent Accuracy: An in-built spring mechanism provides constant measuring force, effectively eliminating user-induced measurement error.
- Versatile Integration: The indicator can be rotated and locked to suit the operator's viewing angle.
- Calibration & Setup: Setting is performed using Gauge Blocks or Cylindrical Setting Masters. Once zeroed, the gauge allows for direct size measurement.
- Application Suitability: Optimized for the inspection of continuous and batch production items.
Dimensional Reference (mm)
Note: Product is supplied without dial indicator.
