Quick Go/No-Go measurement for mass production Anvil retracting stroke: 2.5mm Dial indicator: measuring range ยฑ0.07mm, graduation 1ยตm, accuracy 1ยตm Constant measuring force over the whole range: 8.5N Carbide measuring faces IP54 dust/waterproof Zero position of dial indicator is adjustable and can be locked (supplied with locking wrench) Adjustable platform height Code Range L a b

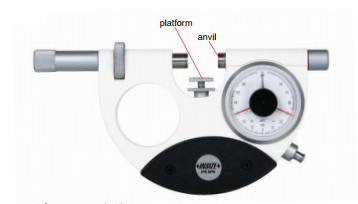

The INSIZE Dial Snap Gage (Series 3335) is a precision measuring instrument engineered for rapid Go/No-Go inspection in mass production environments. Featuring a robust design with carbide measuring faces and an adjustable platform, this gage ensures consistent, repeatable measurements.
