INSIZE KNIFE EDGE POINT (CODE – 6282)

Name: INSIZE KNIFE EDGE POINT (CODE – 6282)
Brand: INSIZE
SKU: 6282-1001

Code:

DOWNLOAD CATALOG

f in

Click to Expand

INSIZE KNIFE EDGE POINT (CODE – 6282)

Product Overview

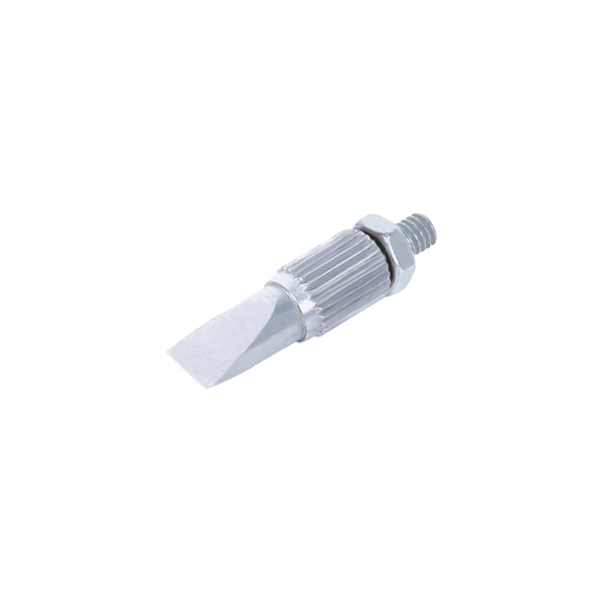

The INSIZE Knife Edge Point (Model Code: 6282-1001) is a specialized contact point designed for use with dial indicators and measuring instruments. Manufactured by INSIZE, this precision component features a steel measuring face and is supplied with a threaded mounting connection.

Key Features & Capabilities

Precision contact point for measuring instruments and dial indicators
Steel measuring face construction

Technical Specifications

Parameter	Specification
Model / SKU Code	6282-1001
Point Type	Knife Edge Point
Material of Measuring Face	Steel
Thread Connection	M2.5 x 0.45

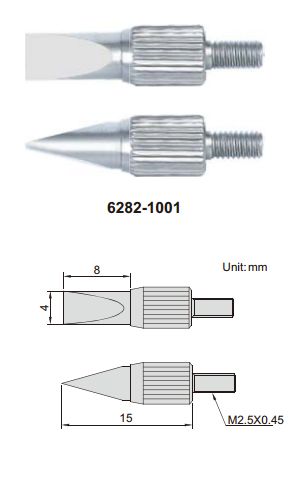

Dimensions	8 mm (length dimension as per technical drawing) / 15 mm overall length variant
