BAKER UNIVERSAL TEST SET

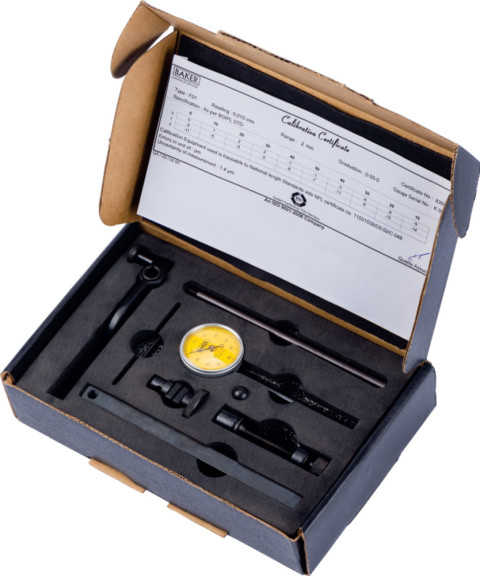

FEATURES OF UNIVERSAL TEST SET Every gauge carries a calibration certificate giving actual values Universal test set Consists of back Plunger dial Gauge, ‘G’ clamp, universal clamp, swinging arm assembly, tool post holder, holding rod, tommy bar and anvil Swinging arm assembly enables the back plunger dial gauge to be used for internal work up
FEATURES OF UNIVERSAL TEST SET
  • Every gauge carries a calibration certificate giving actual values

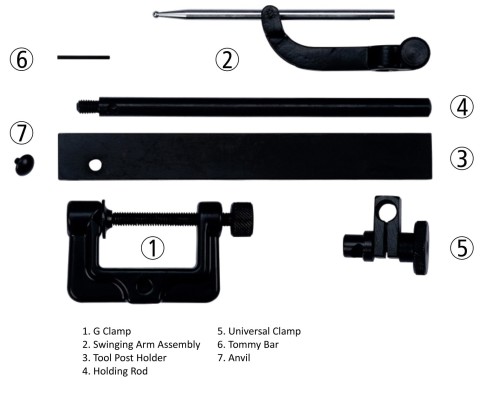

  • Universal test set Consists of back Plunger dial Gauge, ‘G’ clamp, universal clamp, swinging arm assembly, tool post holder, holding rod, tommy bar and anvil
  • Swinging arm assembly enables the back plunger dial gauge to be used for internal work up to a depth of 40 mm similar to a lever type gauge
  • ‘G’ Clamp, tool post holder. holding rod and universal Clamp allows multiple types of mounting possibilities
  • Versatile combinations, allow gauging applications like concentricity checks, alignment of machine tools, testing parallelism and surface plate work



universal-test-set universal-test-set_02 universal-test-set_03



METRIC
Bezel Dia. Type Reading Range Graduation
38mm UI01 0.01mm 2 mm 0-50-0
38mm UI02 0.01mm 2 mm 0-100



INCH
Bezel Dia. Type Reading Range Graduation
38mm UI51 0.001″ 0.1″ 0-50-0
38mm UI52 0.001″ 0.1″ 0-100
