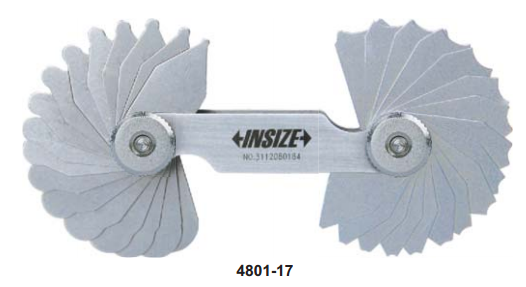

RADIUS GAUGE CODE – 4801

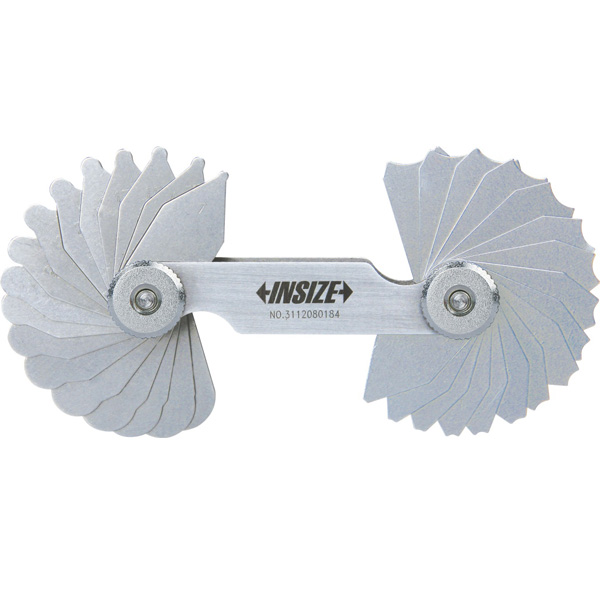

radius gauge-4801 radius gauge-4801_01



Code Range Radius of leaves included (mm) Quantity of leaves
(internal + external )		 Accuracy
4801-17 1 – 7mm 1, 1.25, 1.5, 1.75, 2, 2.25, 2.5, 2.75, 3, 3.5, 4,
4.5, 5, 5.5, 6, 6.5, 7		 17+17 ±0.03mm

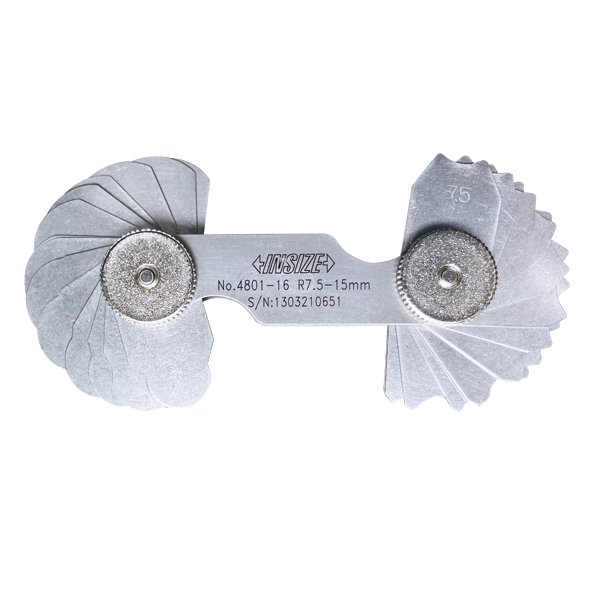

4801-16 7.5 – 15mm 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13, 13.5, 14, 14.5, 15 16+16 ±0.035mm

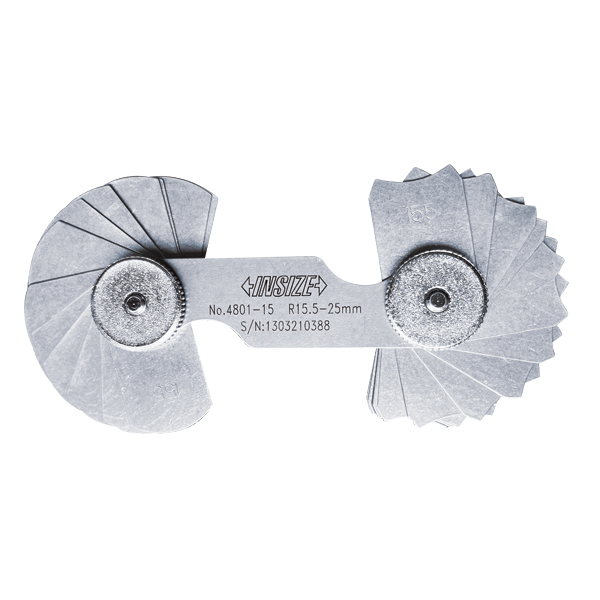

4801-15 15.5 – 25mm 15.5, 16, 16.5, 17, 17.5, 18, 18.5, 19, 19.5, 20, 21, 22, 23, 24, 25 15+15 ±0.042mm

Check the PDF



RADIUS GAUGE SET CODE – 4804

  • Each piece has 3 concave and 2 convex gauging surfaces
  • Supplied with handle
radius gauge-4804 radius gauge-4804_01 4804_02



Code Range Radius of leaves included (mm) Quantity of leaves
(internal + external )		 Accuracy
4804-26 0.5 – 13mm 0.5, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13 26 ±0.05mm

Check the PDF
