4206

4206_1

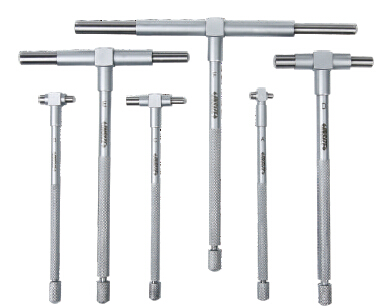

  • 6 gages per set
  • For quick measurement of inside diameter of holes and width of slots
  • Satin chrome finish
Range L Øa Øb Øc
8-12.7mm 115 3.9 2.9 6.2
12.7–19mm 115 5.3 3.8 6.2
19-32mm 115 5.3 3.8 6.2
32-54mm 137 7.6 6.1 7.2
54-90mm 137 7.6 6.1 7.2
90-150mm 137 7.6 6.1 7.2



Code Total Range Gages Included
4206-1 8-150mm

8-12.7mm,12.7-19mm

19-32mm, 32-54mm

54-90mm, 90-150mm
