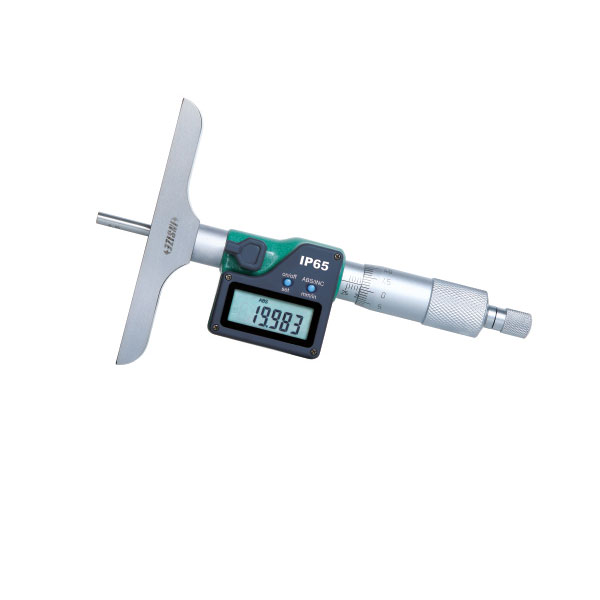

BAKER DIGITAL DEPTH MICROMETER

Code:

▪Measure over-pin diameter of gears
▪Resolution 0.001mm/0.00005"
▪IP65 dust/waterproof
▪Button function: on/off, set, mm/inch, data transmit
▪Data output
▪Automatic power off
▪Ratchet stop
▪Supplied with setting standards (except 0-25mm/0-1")
▪Optional accessory: ball tips (code 7391), data output cable

Click to Expand

BAKER DIGITAL DEPTH MICROMETER

Product Overview

The Baker Digital Depth Micrometer (Model: DMM150-DM60) is a precision measurement instrument designed for accurate depth evaluation and measuring over-pin diameter of gears. Featuring a measuring range of 0-150 mm and high-precision digital output, this tool is engineered to meet strict industrial quality control and machining requirements.

Key Features & Capabilities

Measurement Application: Designed to measure over-pin diameter of gears and depth applications.
IP65 Protection: Dust and waterproof rating ensuring reliable operation in harsh workshop environments.
Advanced Digital Functions: Equipped with ON/OFF, SET, mm/inch conversion, and data transmission capabilities.
Data Output: Built-in data output functionality for seamless recording.
Power Efficiency: Features automatic power-off functionality to preserve battery life.
Ratchet Stop: Provides consistent and repeatable measuring force.
Supplied Standards: Includes setting standards for calibration verification across applicable ranges.

Technical Specifications

Parameter	Specification
Brand	Baker Gauges
Type / Model	DMM150-DM60
Category	Depth Gauges / Measuring Instruments
Measuring Range	0–150 mm
Resolution	0.001 mm / 0.00005"
Protection Rating	IP65 Dust / Waterproof
Button Functions	On/Off, Set, mm/inch, Data Transmit
Stop Type	Ratchet Stop
Optional Accessories	Ball tips (code 7391), Data output cable
