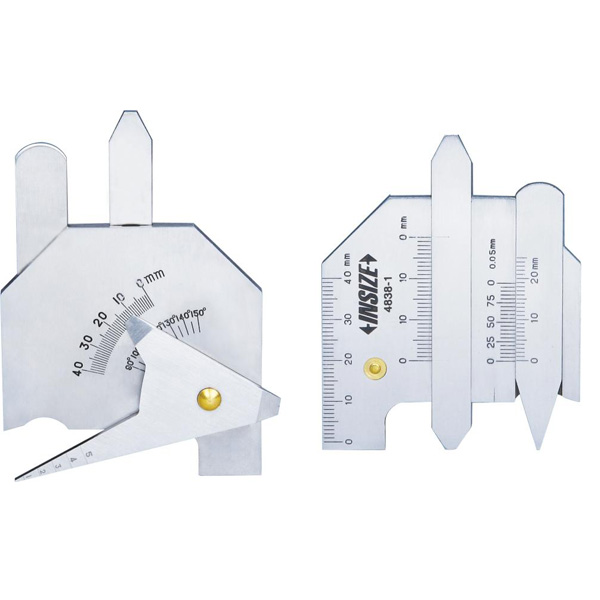

WELDING GAUGE CODE – 4838

Made of stainless steel Code Measurement Range Graduation Accuracy 4838-1 crown height 0 – 10mm 1mm ±0.5mm leg height 0 – 14mm 1mm ±0.5mm undercut depth 0 – 5mm 0.05mm ±0.05mm throat size 0 – 13mm 1mm ±0.5mm weld length 0 – 40mm 1mm ±1mm angle 90° – 150° 5° ±1° gap 0.5 – 5mm
