INSIZE FILLET WELD GAGE (CODE – 4836)

Code:

▪Measure concave and convex weld sizes
▪7 blades are included
▪Made of stainless steel

Click to Expand

INSIZE FILLET WELD GAGE (CODE – 4836)

Product Overview

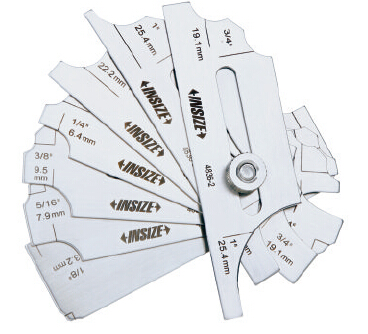

The INSIZE Fillet Weld Gage (Code 4836) is a precision measuring instrument designed to accurately measure both concave and convex weld sizes. Constructed from durable stainless steel, each gage features 7 multi-functional blades to cover a comprehensive range of metric or inch sizing requirements.

Key Features & Capabilities

Measures both concave and convex weld sizes
Includes 7 stainless steel blades per gage set
Manufactured from corrosion-resistant stainless steel for enhanced durability
Available in metric (4836-1) and inch (4836-2) variants

Technical Specifications

Code	Size Range	Accuracy
4836-1	3mm, 4mm, 5mm, 6mm, 8mm, 9mm, 10mm, 11mm, 12mm, 14mm, 16mm, 19mm, 22mm, 25mm	±0.5mm
4836-2	1/8" (3.2mm), 3/16" (4.8mm), 1/4" (6.4mm), 5/16" (7.9mm), 3/8" (9.5mm), 7/16" (11.1mm), 1/2" (12.7mm), 5/8" (15.9mm), 3/4" (19.1mm), 7/8" (22.2mm), 1" (25.4mm)	±0.02" (0.5mm)
