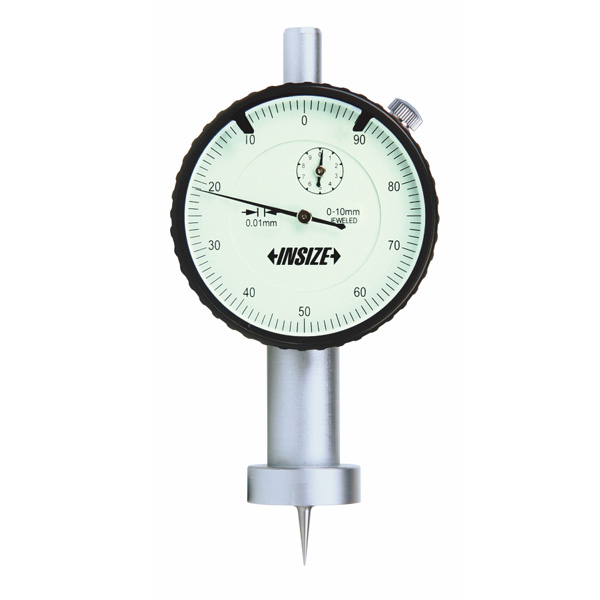

The INSIZE Dial Depth Gages (Code 2343) are precision measuring instruments designed for accurate depth measurement applications. Available in models 2343-101 and 2343-102, these gages feature a durable stainless steel base, a pointed contact tip, and an easy-to-read dial indicator with a 0-10mm measuring range.
- Stainless Steel Base: Robust and stable base construction available in Ø16mm or Ø25mm variants depending on the model.
- Pointed Tip: Equipped with an M2.5x0.45 pointed tip (SR0.2) for precise contact.
- Accuracy: High measurement accuracy of ±0.017mm.
- Dial Indicator: Features a 10mm dial indicator stroke with 0.01mm graduations.
Model Specification Matrix

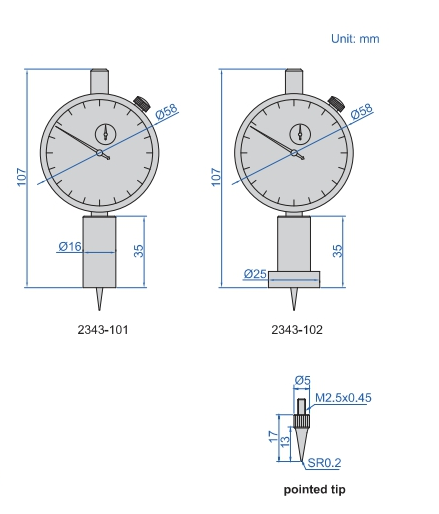

Dimensional & General Specifications
- Unit of Measurement: mm
- Dial Face Diameter: Ø58mm
- Overall Height (Gage): 107mm
- Base Height: 35mm
- Tip Thread: M2.5x0.45
- Tip Radius: SR0.2
