INTERNAL MICROMETER WITH INTERCHANGEABLE ANVILS CODE – 3226

Product Overview

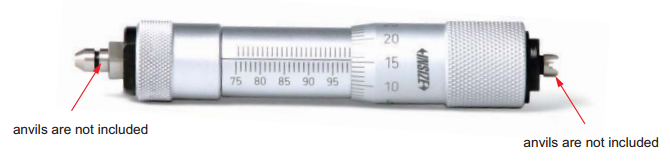

The INSIZE Internal Micrometer with Interchangeable Anvils (Series 3226) is a precision measuring instrument designed for internal dimensional measurement across various ranges from 75mm to 300mm. It features a graduation of 0.01mm and requires interchangeable anvils for operation (anvils are not included with the base unit).

Key Features & Capabilities

Graduation: 0.01mm precision for accurate reading
Interchangeable Anvils: Adaptable measuring faces for diverse internal measurement applications (anvils not included)
Optional Accessories:
Ball tips (Code 7391)
V-shaped and cone-shaped anvils (Code 7321)
Zero block for V-shaped and cone-shaped anvils (Code 3226-SP)

Technical Specifications

Model Range Matrix & Zero Block Reference

Code	Range	Zero Block (Optional)
3226-1001	75-100mm	100mm (Code 3226-SP100)
3226-1251	100-125mm	100mm (Code 3226-SP100)
3226-1501	125-150mm	150mm (Code 3226-SP150)
3226-1751	150-175mm	150mm (Code 3226-SP150)
3226-2001	175-200mm	200mm (Code 3226-SP200)
3226-2251	200-225mm	200mm (Code 3226-SP200)
3226-2501	225-250mm	250mm (Code 3226-SP250)
3226-2751	250-275mm	250mm (Code 3226-SP250)
3226-3001	275-300mm	300mm (Code 3226-SP300)
