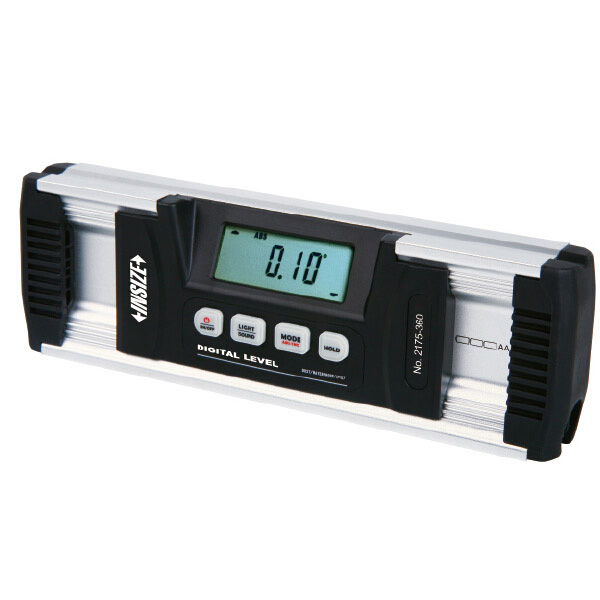

The INSIZE Digital Level and Slope Meter (Model: 2179-360) is a precise electronic measuring instrument housed in a durable aluminum frame with shock-absorbing rubber end caps. Designed for professional leveling and angle measurement tasks, it features an IP67 dustproof and waterproof rating, a magnetic bottom with a V-groove for secure placement on shafts, and a permanent internal sea-level calibration that eliminates the need for zero resetting upon battery replacement.
- Dust and Water Resistance: IP67 certified dustproof and waterproof construction for demanding industrial environments.

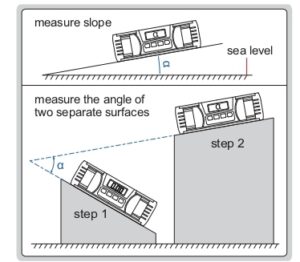

- Dual Functionality: Operates reliably as both a standard level and a slope meter.
- Durable Build: Sturdy aluminum frame equipped with shock-absorbing rubber end caps.
- Magnetic Base: Features a magnetic bottom integrated with a V-groove designed for secure mounting on cylindrical shafts.
- Permanent Calibration: Sea level is permanently set inside the chip; zero setting is not required when batteries are replaced.
- User Controls & Functions:
- ON/OFF
- Backlight / buzzer alarm
- Absolute and incremental measurement modes
- Unit selection (
mm/m, %, °) - HOLD function to freeze readings on display
- Power Management: Powered by three AAA batteries with an automatic power-off feature to conserve battery life.
