INSIZE IP67 WATERPROOF DIGITAL CALIPER CODE 1126

Name: INSIZE IP67 WATERPROOF DIGITAL CALIPER CODE 1126
Brand: INSIZE
SKU: 1126

Code:

Description: IP67 dust/waterproof Resolution: 0.01mm/0.0005″ Large display Button function: zero, on/off, mmAnch Battery CR2032, automatic power off Meet DIN862 Made of stainless steel Code Range Accuracy Thumb roller Type L a b d 1126-150 • 0-150mm/0-6″ ±0.03mm with A 234 20 15 40 1126-200 • 0-200mm/0-8″ ±0.03mm with A 286 24 19 50 1126-300 0-300mm/0-12″

f in

Click to Expand

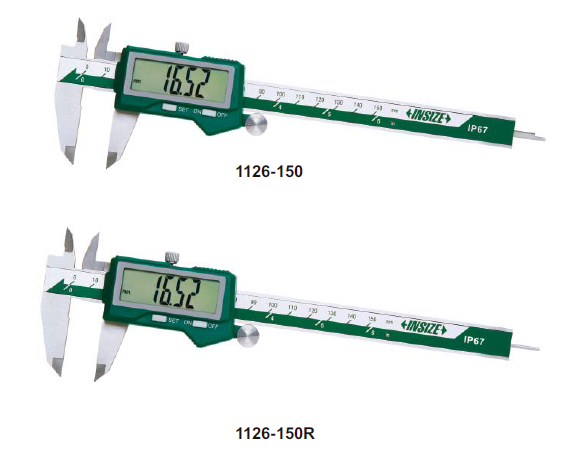

INSIZE IP67 Waterproof Digital Caliper Code 1126

Product Overview

The INSIZE 1126 series is a professional-grade digital caliper designed for high-precision measurement tasks. Constructed from stainless steel and rated to IP67 standards for dust and water protection, these calipers are engineered to meet DIN862 accuracy requirements. The series features a large, easy-to-read digital display and is powered by a CR2032 battery with an integrated automatic power-off function to preserve battery life.

Key Features & Capabilities

IP67 Protection: Fully protected against dust ingress and immersion in water.
High Resolution: Offers a measurement resolution of 0.01mm / 0.0005".
DIN862 Compliance: Manufactured to meet rigorous industrial standards for accuracy.
User-Friendly Interface: Equipped with a large display and intuitive button functions, including Zero, On/Off, and mm/inch conversion.
Durable Construction: Built with high-quality stainless steel for long-term reliability.
Power Management: Utilizes a CR2032 battery with an automatic power-off feature.

Technical Specifications

Code	Range	Accuracy	Thumb Roller	Type	L (mm)	a (mm)	b (mm)	d (mm)
1126-150	0-150mm/0-6"	±0.03mm	With	A	234	20	15	40
1126-200	0-200mm/0-8"	±0.03mm	With	A	286	24	19	50
1126-300	0-300mm/0-12"	±0.03mm	With	A	390	26	22	60
1126-150W	0-150mm/0-6"	±0.03mm	Without	A	234	20	15	40
1126-200W	0-200mm/0-8"	±0.03mm	Without	A	286	24	19	50
1126-300W	0-300mm/0-12"	±0.03mm	Without	A	390	26	22	60
1126-150R	0-150mm/0-6"	±0.03mm	With	R	234	20	15	40
