BAKER UNIVERSAL MAGNETIC STAND

▪Magnetic stand accepts all dial indicators and dial test indicators
▪The On-Off switch offers instant mounting and dismounting without any adverse effect to the indicators or workpiece surface
▪With mechanical locking system.

Click to Expand

Product Overview

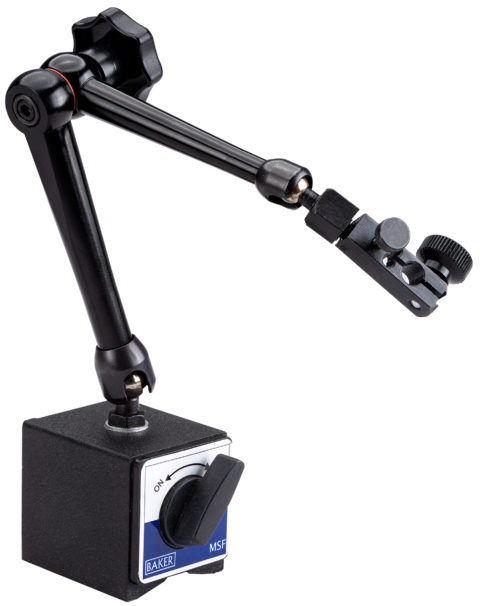

The Baker Universal Magnetic Stand (featuring variants including MS Magnetic Stand and MSF Magnetic Stand with fine adjustment) is designed to accept all dial indicators and dial test indicators. Equipped with a magnetic base featuring an On-Off switch, the stand enables instant mounting and dismounting without causing adverse effects to indicators or workpiece surfaces, utilizing a reliable mechanical locking system.

Key Features & Capabilities

Accepts all dial indicators and dial test indicators.
On-Off switch enables instant mounting and dismounting without adverse effects to indicators or workpiece surfaces.
Integrated mechanical locking system for secure positioning.
Available in standard (MS) and fine adjustment (MSF) variants.
Smooth On-Off switch operation with a firm stem lock.
Lightweight design incorporating high magnetic force.

Technical Specifications

Technical Parameter	MS Specification	MSF Specification
Magnetic Base	With on/off switch	With on/off switch
Clamp Hole	$3/8"$ & $5/32"$ and $8\text{ mm}$ (when set a ring at the hole $3/8"$ & $5/32"$)	$3/8"$ & $5/32"$ and $8\text{ mm}$ (when set a ring at the hole $3/8"$ & $5/32"$)
Magnetic Force	$600\text{ N}$	$600\text{ N}$
Main Stem	$\varnothing12 \times 176\text{ mm}$	$\varnothing12 \times 176\text{ mm}$
Branch Stem	$\varnothing10 \times 165\text{ mm}$	$\varnothing10 \times 165\text{ mm}$
Tapped Hole	$\text{M8} \times 1.25\text{ mm}$	$\text{M8} \times 1.25\text{ mm}$
Base Dimensions (LxWxH)	$58\text{ mm} \times 50\text{ mm} \times 55\text{ mm}$	$58\text{ mm} \times 50\text{ mm} \times 55\text{ mm}$
Weight	$1.4\text{ kg}$	$1.4\text{ kg}$
Fine Adjustment	—	$15\text{ mm}$
