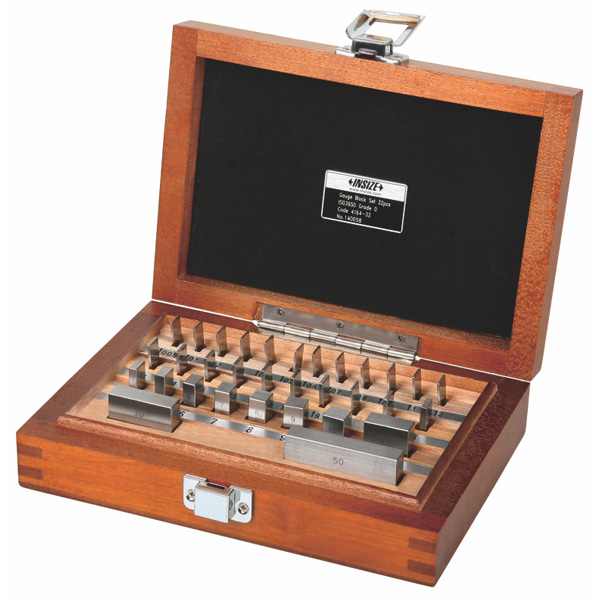

INSIZE CARBIDE SLIP GAGE BLOCK SET (CODE – 4164)

Code:

▪Made of carbide, extremely wear resistance and corrosion resistance, excellent dimension stability.
▪Meet ISO3650
▪Supplied with manufacturer inspection certificate

Click to Expand

INSIZE CARBIDE SLIP GAGE BLOCK SET (CODE – 4164)

Product Overview

The INSIZE Carbide Slip Gage Block Set (Code – 4164) is a precision measuring standard designed for metrology, calibration, and workshop applications. Constructed from high-grade carbide, these gauge blocks offer exceptional wear resistance, superior corrosion resistance, and excellent dimensional stability over extended periods of use. All sets comply with ISO 3650 standards and are supplied with a manufacturer inspection certificate.

Key Features & Capabilities

Made of premium carbide for extreme wear resistance and corrosion resistance
Excellent dimensional stability for reliable, long-term calibration accuracy
Meets ISO 3650 standards
Supplied with manufacturer inspection certificate
Available in various block counts ranging from 32 to 122 pieces in Grade 0 and Grade 1 accuracy classes

Technical Specifications

Set Configuration & Part Numbers

Blocks per Set	Gage Blocks Included in Set (Size, Step, Quantity)	Grade 0 Code	Grade 1 Code
122	1.0005 mm (Qty: 1)<br>1.0001-1.009 mm (Step: 0.001 mm, Qty: 9)<br>1.01-1.49 mm (Step: 0.01 mm, Qty: 49)<br>1.6-1.9 mm (Step: 0.1 mm, Qty: 4)<br>0.5-24.5 mm (Step: 0.5 mm, Qty: 49)<br>30-100 mm (Step: 10 mm, Qty: 8)<br>25-75 mm (Step: 50 mm, Qty: 2)	4164-122	4164-1122
112	1.0005 mm (Qty: 1)<br>1.0001-1.009 mm (Step: 0.001 mm, Qty: 9)<br>1.01-1.49 mm (Step: 0.01 mm, Qty: 49)<br>0.5-24.5 mm (Step: 0.05 mm, Qty: 49)<br>25-100 mm (Step: 25 mm, Qty: 4)	4164-112	4164-1112
103	1.0005 mm (Qty: 1)<br>1.01-1.49 mm (Step: 0.01 mm, Qty: 49)<br>0.5-24.5 mm (Step: 0.5 mm, Qty: 49)<br>25-100 mm (Step: 25 mm, Qty: 4)	4164-103	4164-1103
87	1.001-1.009 mm (Step: 0.001 mm, Qty: 9)<br>1.01-1.49 mm (Step: 0.01 mm, Qty: 49)<br>0.5-9.5 mm (Step: 0.05 mm, Qty: 19)<br>10-100 mm (Step: 10 mm, Qty: 10)	4164-87	4164-187
83	0.5 mm (Qty: 1)<br>1 mm (Qty: 1)<br>1.005 mm (Qty: 1)<br>1.01-1.49 mm (Step: 0.01 mm, Qty: 49)<br>1.5-1.9 mm (Step: 0.1 mm, Qty: 5)<br>2-9.5 mm (Step: 0.5 mm, Qty: 16)<br>10-100 mm (Step: 10 mm, Qty: 10)	4164-83	4164-183
76	1.005 mm (Qty: 1)<br>1.01-1.49 mm (Step: 0.01 mm, Qty: 49)<br>0.5-9.5 mm (Step: 0.5 mm, Qty: 19)<br>10-40 mm (Step: 10 mm, Qty: 4)<br>50-100 mm (Step: 25 mm, Qty: 3)	4164-76	4164-176
47	1.005 mm (Qty: 1)<br>1.01-1.09 mm (Step: 0.01 mm, Qty: 9)<br>1.1-1.9 mm (Step: 0.1 mm, Qty: 9)<br>1-24 mm (Step: 1 mm, Qty: 24)<br>25-100 mm (Step: 25 mm, Qty: 4)	4164-47A	4164-147A
47	1.005 mm (Qty: 1)<br>1.01-1.19 mm (Step: 0.01 mm, Qty: 19)<br>1.2-1.9 mm (Step: 0.1 mm, Qty: 8)<br>1-9 mm (Step: 1 mm, Qty: 9)<br>10-100 mm (Step: 10 mm, Qty: 10)	4164-47	4164-147
46	1.001-1.009 mm (Step: 0.001 mm, Qty: 9)<br>1.01-1.09 mm (Step: 0.01 mm, Qty: 9)<br>1.1-1.9 mm (Step: 0.1 mm, Qty: 9)<br>1.1-1.9 mm (Step: 0.1 mm, Qty: 9)<br>1-4 mm (Step: 1 mm, Qty: 5)	4164-46	4164-146
32	1.005 mm (Qty: 1)<br>1.01-1.09 mm (Step: 0.01 mm, Qty: 9)<br>1.1-1.9 mm (Step: 0.1 mm, Qty: 9)<br>1-9 mm (Step: 1 mm, Qty: 9)<br>10-30 mm (Step: 10 mm, Qty: 3)<br>50 mm (Qty: 1)	4164-32	4164-132

Standard Dimensions (Size $L$)

$0.5 \le L \le 10\text{ mm}$: Width ($W$) = $9\text{ mm}$, Height ($H$) = $30\text{ mm}$
$L > 10\text{ mm}$: Width ($W$) = $9\text{ mm}$, Height ($H$) = $35\text{ mm}$
