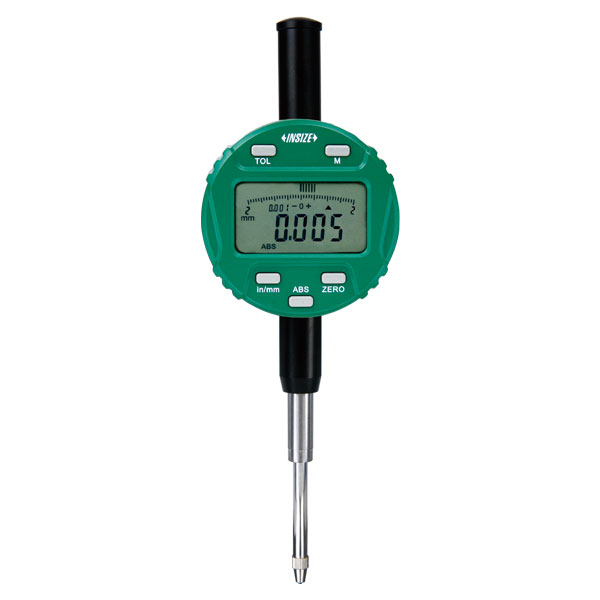

The INSIZE Digital Indicator Advanced Type (Codes 2103 and 2104 series) features both digital readout and an analog pointer for precise measurements in industrial metrology applications. Designed with a 320° rotatable display, these advanced indicators offer extensive button functions including tolerance Go and No-Go evaluation, data preset, measuring direction change, max/min/TIR measurement, inch/metric conversion, and absolute/incremental measurement modes.
- Display & Interface: Digital numerical readout combined with an analog pointer; display can be rotated by 320°.
- Button Functions:
- Tolerance Go and No-Go display
- Data preset
- Measuring direction change
- Max / Min / TIR measurement
- Inch / Metric conversion
- Absolute / Incremental measurement
- Power & Data Management: Powered by a CR2032 battery featuring automatic power-off with adjustable time settings; equipped with data output capabilities.
- Optional Accessories: Data output cable (code 7315-50M), backs, and contact points.
---
Resolution 0.001mm / 0.00005"
Resolution 0.01mm / 0.0005"
\Supplied with manufacturer inspection certificate.*
