WELDING GAUGE CODE – 4835

Name: WELDING GAUGE CODE – 4835
Brand: INSIZE
SKU: 4835

Code:

Adjustable scale to compensate pointer wear Made of stainless steel Code Measurement Range Graduation Accuracy 4835-1 crown height 0 – 25mm (0 – 1″) 1mm (1/16″) ±0.5mm fillet weld leg height 0 – 25mm (0 – 1″) 1mm (1/16″) ±0.5mm misalignment (high-low) 0 – 25mm (0 – 1″) 1mm (1/16″) ±0.5mm undercut depth 0 –

DOWNLOAD CATALOG

f in

Click to Expand

WELDING GAUGE CODE – 4835

Product Overview

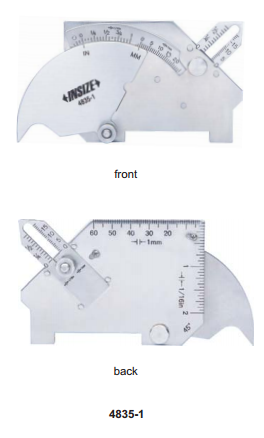

The INSIZE Welding Gauge (Code: 4835-1) is a precision stainless steel measuring instrument designed for inspecting welded joints and preparations. Featuring an adjustable scale to compensate for pointer wear, this versatile multi-purpose gauge provides accurate measurements for weld sizing, misalignment, and preparation angles in both metric and imperial units.

Key Features & Capabilities

Made of durable stainless steel
Adjustable scale designed to compensate for pointer wear
Compact mechanical design with overall dimensions of 100mm width, 69mm height, and an 18mm profile
Dual measurement capability supporting both metric (mm) and imperial (inch) units

Technical Specifications

Measurement Parameter	Range	Graduation	Accuracy
Crown height	0 – 25mm (0 – 1")	1mm (1/16")	±0.5mm
Fillet weld leg height	0 – 25mm (0 – 1")	1mm (1/16")	±0.5mm
Misalignment (high-low)	0 – 25mm (0 – 1")	1mm (1/16")	±0.5mm
Undercut depth	0 – 2mm (0 – 1/8")	1mm (1/16")	±0.5mm
Fillet weld throat size	0 – 20mm (0 – 3/4")	1mm (1/16")	±0.5mm
Angle of preparation	0 – 60°	5°	±1°
Length	0 – 60mm (0 – 2")	1mm (1/16")	±0.5mm
45° angle	—	—	±1°
