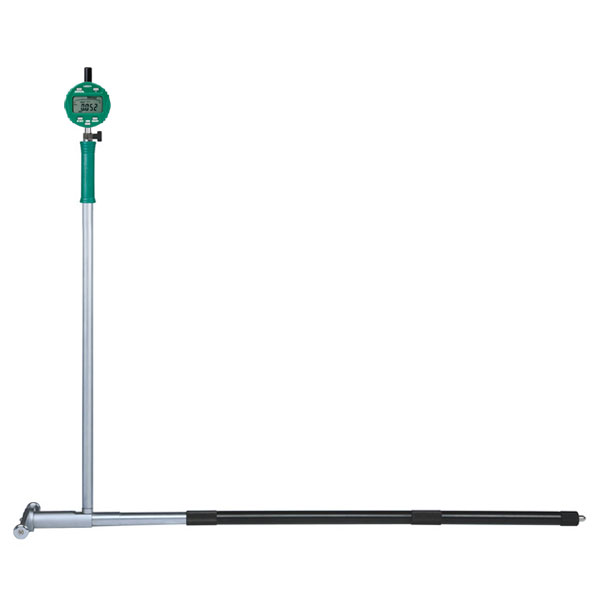

INSIZE BORE GAGE WITH DIAL INDICATOR (CODE – 2828 / 2128)

Product Overview

The INSIZE Bore Gage with Dial Indicator (Series 2828 and 2128) is a precision measuring instrument designed for accurately measuring inside diameters within a range of 400mm to 800mm. Distributed by Gokul Traders, this professional-grade bore gauge is available with standard dial indicators, digital indicators, or waterproof digital indicators depending on the selected model code.

Key Features & Capabilities

Designed for bore measurement across a 400-800mm range
Ceramic contact point and ceramic anvil for durability and wear resistance
Available with mechanical dial indicator or digital/waterproof digital indicator options
Data output capability available on digital models (data output cable code 7315-51B or 7302-40M, optional)
Waterproof digital indicator models feature IP54 dust and water protection

Technical Specifications

Code	Range	Indicator	Accuracy	Repeatability
2828-800A	400-800mm	Dial indicator (code 2308-10FA), range 10mm, graduation 0.01mm	±0.025mm	0.003mm
2128-800A	400-800mm	Digital indicator (code 2108-10F), range 12.7mm/0.5", resolution 0.002mm/0.0001" (can switch to 0.01mm/0.0005")	±0.025mm	0.003mm
2128-800AWP	400-800mm	Waterproof digital indicator (code 2137-10F), range 12.7mm/0.5", dust/waterproof IP54, resolution 0.002mm/0.0001" (can switch to 0.01mm/0.0005")	±0.025mm	0.003mm
