LONG STYLI DIAL TEST INDICATOR CODE – 2896

Name: LONG STYLI DIAL TEST INDICATOR CODE – 2896
Brand: INSIZE
SKU: 2896

Code:

Ceramic bearing Anti magnetic carbide contact point Two measuring directions Supplied with one clamp: diameter Ø8mm Optional accessory: styli (page 138) Code Range Graduation Accuracy Hysteresis Dial reading 2896-05* 0.5mm 0.01mm 13μm 3μm 0-25-0 *Supplied with manufacturer calibration certificate Check the PDF

DOWNLOAD CATALOG

f in

Click to Expand

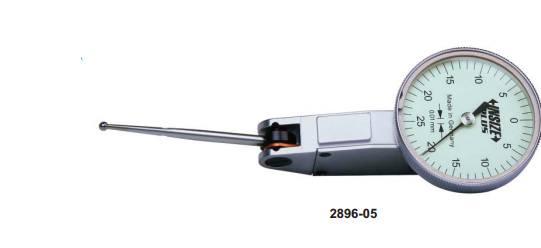

LONG STYLI DIAL TEST INDICATOR CODE – 2896

Product Overview

The INSIZE Long Styli Dial Test Indicator (Model 2896) is a precision measuring instrument designed for accurate dimensional inspection and metrology applications. Manufactured in Germany under strict quality standards, this tool features ceramic bearings, an anti-magnetic carbide contact point, and two measuring directions. Each unit is supplied with an Ø8mm clamping stem and a manufacturer calibration certificate.

Key Features & Capabilities

Ceramic Bearing: Provides enhanced durability, wear resistance, and smooth movement.
Anti-Magnetic Carbide Contact Point: Prevents magnetic interference during shop-floor measurements.
Two Measuring Directions: Versatile operation across multiple inspection orientations.
Included Accessories: Supplied with one clamp featuring an Ø8mm diameter.
Optional Accessories: Compatible with optional styli.

Technical Specifications

Feature / Parameter	Specification
Brand	INSIZE
Origin	Made in Germany
Model / Code	2896-05*
Range	0.5 mm
Graduation	0.01 mm
Accuracy	13 µm
Hysteresis	3 µm
Dial Reading	0-25-0
Clamp Diameter	Ø8 mm
